WIFI Dim CV LED Driver 120w (IP67)
SMT-W-12120-5C-A 12V wifi dimming 120W power supply has passed UL, CE certification, it can realize remote flicker-free dimming after the mobile phone APP is matched, and you can choose 1-5ch channels after connecting with different LED lights. Can achieve alternative dimming
| Model | SMT-W-12120-YC-A | SMT-W-24120-YC-A | |
| Y=1 , 2, 3, 4, 5 for DIM (DW); CCT(TW); RGB; RGBW; RGBW+CCT (RGBCW) | |||
| Output | DC Voltage | 12V | 24V |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Rated current | CH1+CH2+CH3+CH4+CH5=10A | CH1+CH2+CH3+CH4+CH5=5A | |
| Rated power | 120W | ||
| Load Regulation | ±2% | ||
| Input | Voltage Range | 100-277VAC | |
| Frequency Range | 47 - 63Hz | ||
| Power Factor(Typ.)@ full load | PF≥0.98/ 230VAC (Full loading) | ||
| THD(Typ.)@ full load | <15% | ||
| Efficiency(Typ.)@ full load | 89% @230VAC | 89%@230VAC | |
| AC Current(Max.) | 1.25A | 1.25A | |
| InrushCurrent (Typ.) | 53A (Twidth 250us measured at 50% I peak, COLD START, 230VAC) | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | Hiccup mode, recover automatically after fault condition is removed | |
| Over Load | ≤120% ,hiccup mode, recover automatically after fault condition is removed | ||
| Over temperature | ≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop | ||
| Protection Class | II | ||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | |
| Working Humidity | 20 - 95%RH ,non-condensing | ||
| StorageTEM.,Humidity | -40 - +80℃,10 - 95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13 (EU) & UL8750 UL1310 (US) | |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC (EU) & I/P-O/P:1.5KVAC(US) | ||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
| EMC Emission | EN55015 EN61000-3-2 EN61000-3-3 (EU) & FCC Part 15 B (US) | ||
| EMC Immunity | EN61000-4-2,3,4,5,6,11 EN61547 | ||
| Others | Net Weight | 0.90KG | |
| Dimension | 200*70*43mm (L*W*H) | ||
| packing | 340*275*170mm/10PCS/CTN G.W.:11.3KG/CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. | ||
| 2. Tolerance: includes set up tolerance, line regulation and load regulation . | |||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | |||
※Input terminal with 3P; Live Wire(L) , Neutral Wire (N) . Note: vacant for middle terminal
Suggested wire diameter: Primary 0.75-2.5mm² (18-14 AWG); Secondary 0.5-2.5mm² (20-14 AWG)
※Output terminals with 6P; LED SEC positive (LED+), LED negative (LED-). Connected to LED light; Common anode design
2P for DIM (DW) dimming;
3P for CCT (TW) dimming;
4P for RGB dimming;
5P for RGBW dimming;
6P for RGB+CCT dimming.
※Please make sure you connect these correctly ,otherwise your product will not work correctly and could be damaged.

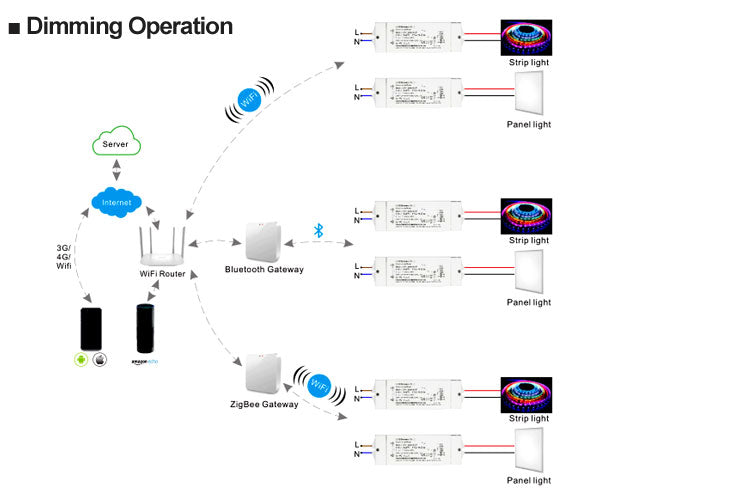

1. wifi dimmable driver could be controlled by Mobile App
※ Use mobile phone to scan the QR code below or download“Smart Life”from the Apple store or Android market.
2. wifi dimmable driver could be controlled by Smart Speaker, like Google home or Amazon echo
※ Google home
1) Configure Google Home app through "Google Home" in App Store or Google Play to install the app.
2)Set up Google Home and configure in Home Control
3) Add devices in Smart Life app (Refer to App Instruction)
4) Link Smart Life account in Home Control then WIFI wireless dimmable driver could be controlled through Google home.
For detailed operation, please refer to Quick Guide of Using Google Home to Control Smart Devices from our official website www.swinpower.com .
※ Amazon echo
1) configure Echo through web or Amazon Alexa app in App Store or Google Play to install the app.
Web configuration link: http://alexa.amazon.com/spa/index.html
2) Set up Amazon Echo and enable Smart Life Skill
3) Add devices in Smart Life app (Refer to App Instruction)
4) Link Smart Life account to Alexa
5) Discover devices which have already been added in the Smart Life app then WIFI wireless dimmable driver could be controlled through Echo.
For detailed operation, please refer to Quick Guide of Using Amazon Echo to Control Smart Devices from our official website www.swinpower.com .
