Ultra-thin CV Non-Dimmable LED Driver 6W
SMT-012-006VWP
Non-dimmable LED Driver
SMARTS

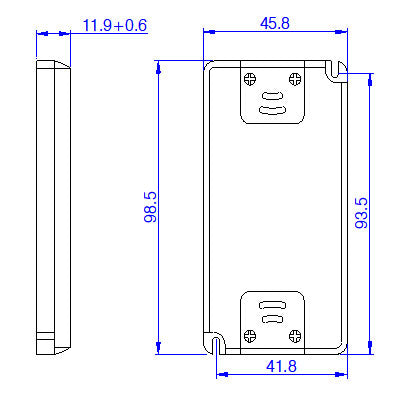

The mini size constant voltage led driver 12v 6w has passed the CE certification, the size is only 98.5×45.8×11.9mm, this power supply can provide 6W stable power, the input voltage is 100-240V.
...
The mini size constant voltage led driver 12v 6w has passed the CE certification, the size is only 98.5×45.8×11.9mm, this power supply can provide 6W stable power, the input voltage is 100-240V.
| MODEL | SMT-012-006VWP | SMT-024-006VWP | |||
| OUTPUT | DC VOLTAGE | 12V | 24V | ||
| RATED CURRENT | 0.5Amp | 0.25Amp | |||
| VOLTAGE RANGE | 0-0.5A | 0-0.25A | |||
| RATED POWER | 6Watt | 6Watt | |||
| RIPPLE&NOISE(max) | 300mV | 300mV | |||
| VOLTAGE TOLERANCE | ±5% | ±5% | |||
| LINE REGULATION | ±1% | ±1% | |||
| LOAD REGULATION | ±2% | ±2% | |||
| INPUT | VOLTAGE RANGE | 100-240VAC | 100-240VAC | ||
| FREQUENCY RANGE | 47-63Hz | 47-63Hz | |||
| POWER FACTOR(Typ.) | |||||
| EFFICIENCY(Typ.) | ﹥83% | ﹥83% | |||
| AC CURRENT(Typ.) | 0.0.9A/110VAC, 0.06A/220VAC | ||||
| PROTECTION | SHORT CIRCUIT | Protection type:recovers automatically after condition is removed | |||
| OVER CURRENT | overload protected@145-160% above peak rating | ||||
| OVER LOAD | 1.0A | 0.6A | |||
| ENVIRONMENT | WORKING TEMP. | -10~+50℃ (Refer to output load derating curve) | |||
| WORKING HUMIDITY | 20~99% RH non-condensing | ||||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | ||||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13; UL /CE /ROHS approval | |||
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| EMC Test Standards | EN55015;EN61000-3-2;EN61000-3-3;EN61547;EN61000-4-2,3,4,5,6,8,11; | ||||
| NOTE | 1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature. | ||||
| 2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor. | |||||
| 3.Tolerance:includes set up tolerance,line regulation and load regulation. | |||||
