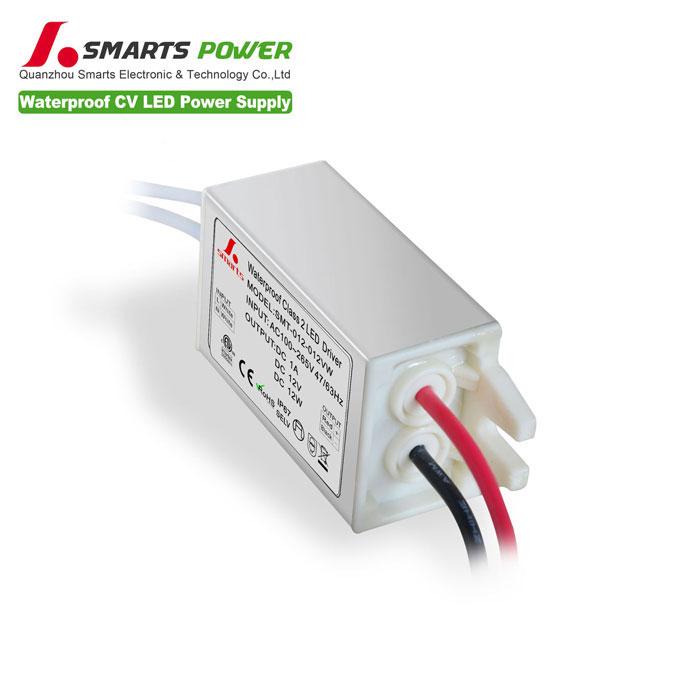

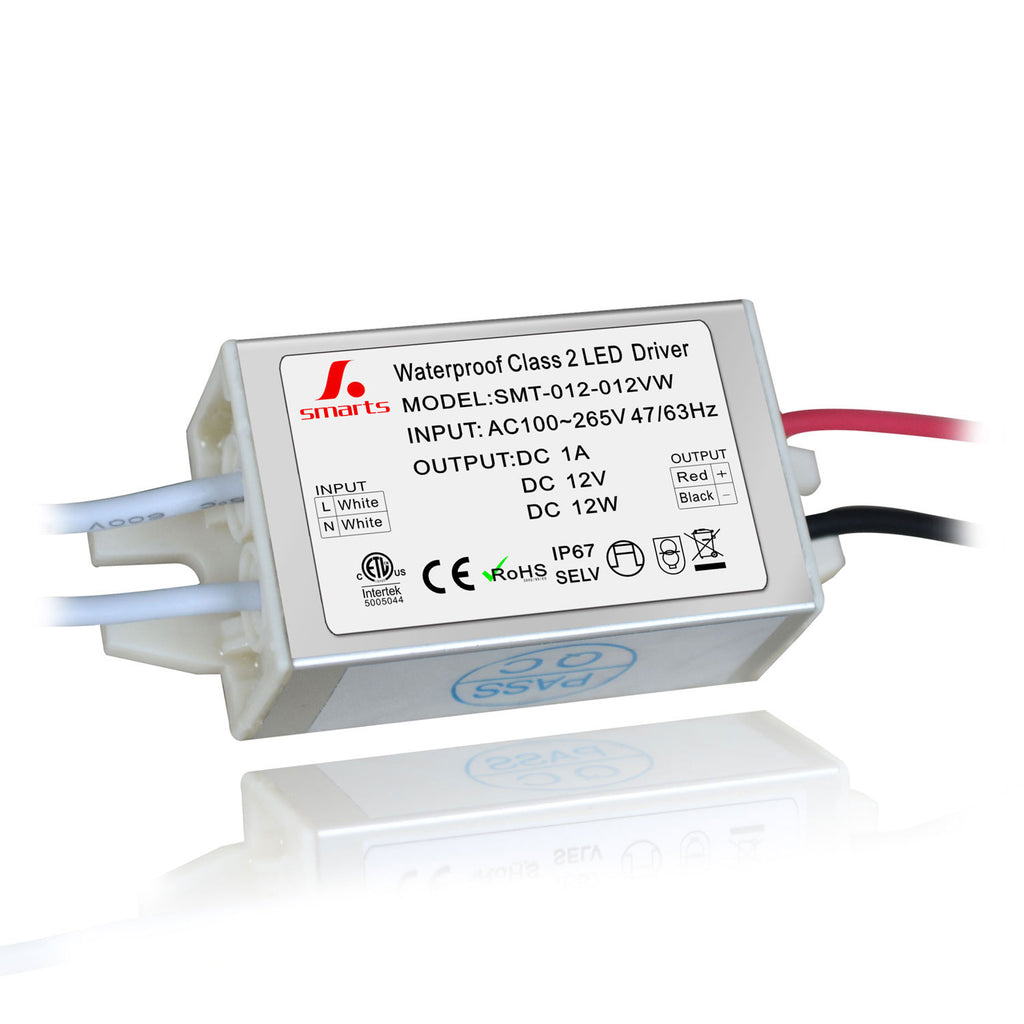

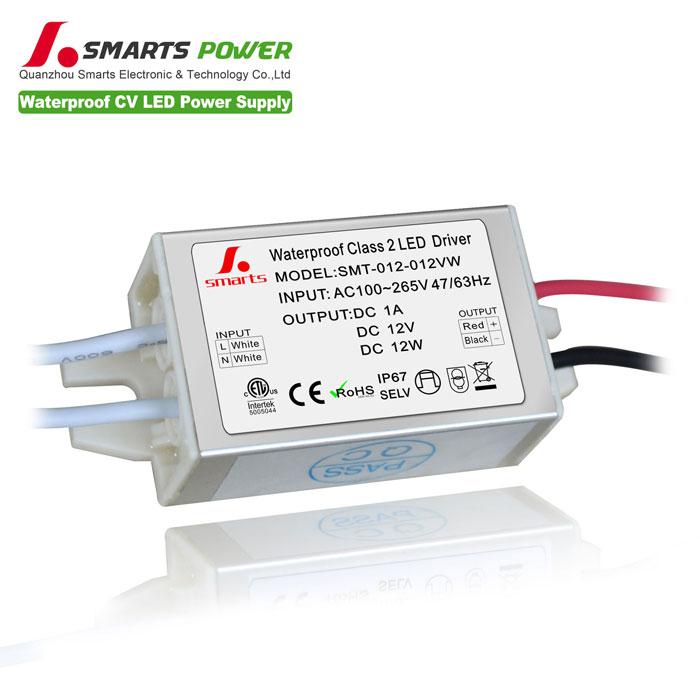

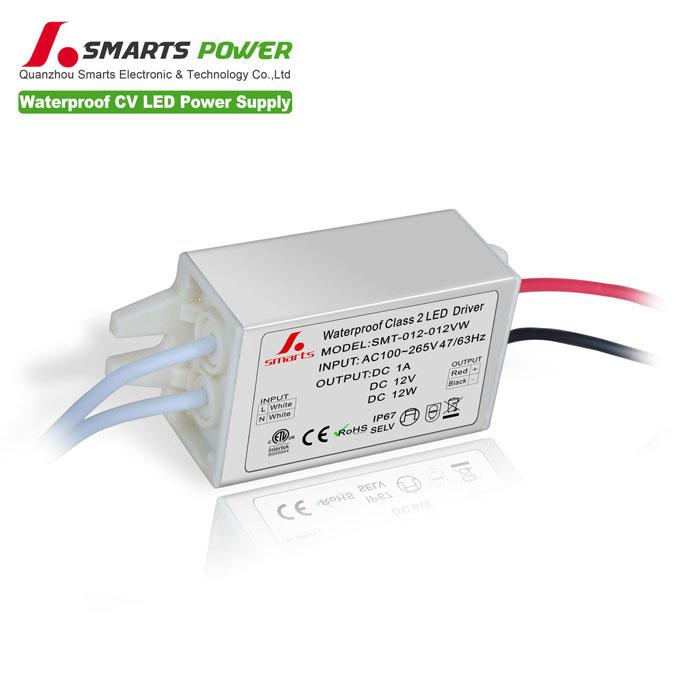

Waterproof LED Driver 12W
SMT-012-012VW
Non-dimmable LED Driver
SMARTS
SMT-012-012VW is a waterproof IP67 led power supply for constant voltage type.12w LED driver 3 years warranty,Mini size and it is have short circuit/overload/over temperature protection.
MODEL
...
SMT-012-012VW is a waterproof IP67 led power supply for constant voltage type.12w LED driver 3 years warranty,Mini size and it is have short circuit/overload/over temperature protection.
| MODEL | SMT-012-012VW | SMT-024-012VW | |
| OUTPUT | DC VOLTAGE | 12V | 24V |
| RATED CURRENT | 1A | 0.5A | |
| CURRENT RANGE | 0~1A | 0~0.5A | |
| RATED POWER | 12W | 12W | |
| RIPPLE&NOISE(max) | <700mV | <400mV | |
| VOLTAGE TOLERANCE | ±0.5V | ±0.5V | |
| INPUT | VOLTAGE RANGE | 90~265VAC | |
| FREQUENCY RANGE | 47~63Hz | ||
| POWER FACTOR(Typ.) | |||
| EFFICIENCY(Typ.) | >81% | >81% | |
| AC CURRENT(Typ.) | 0.20A @110VAC / 0.099A@220VAC | ||
| PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | |
| Overload | overload protected@145-160% above peak rating | ||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | ||
| ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) | |
| INGRESS PROTECTION | IP67 design for indoor or outdoor installations | ||
| STORAGE TEMP | -40~+80℃ | ||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13;SELV;IP67 UL, CE, ROHS approved | |
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||
| EMC Test Standards | EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 | ||
| EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006 | |||
| NOTE | 1.All parameters NOT specially mentioned are measured at 110V~220VAC input,rated load and 25℃ of ambient temperature. | ||
| 2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor. | |||
| 3.Tolerance:includes set up tolerance,line regulation and load regulation. | |||
