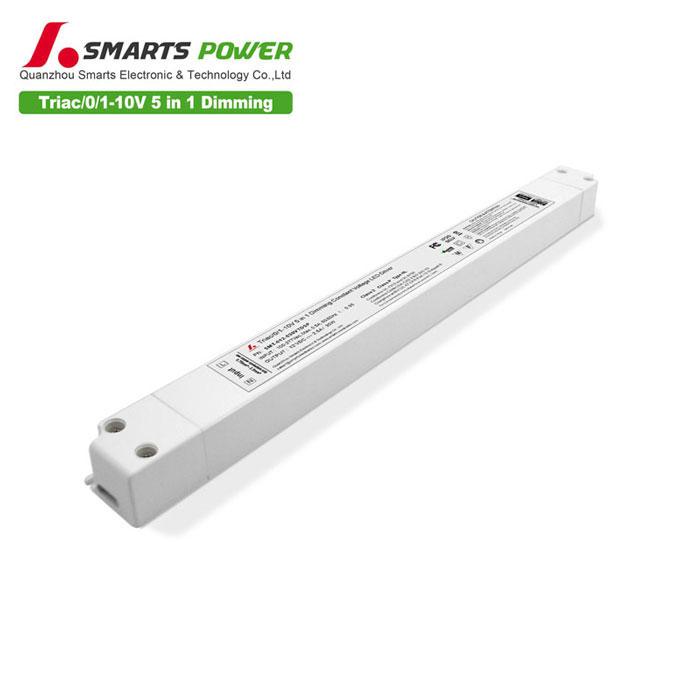

Slim Size 5 in 1 Dimmable LED Driver 30W (IP20)
VTDSP dimmable 12V 30W led driver power supply has TRIAC, 0-10V, MLV, ELV, and PWM dimming functions. It has also passed UL, CE, FCC, HL TYPE, Class P, Class 2 standard certification. It is suitable for the North American market. It has a 7-year warranty
| model | SMT-012-030VTDSP | SMT-024-030VTDSP | |
| Output | DC Voltage | 12VDC | 24VDC |
| Voltage Accuracy | ±5% | ±5% | |
| Rated current | 2.5Amp | 1.25Amp | |
| Rated power | 30W | 30W | |
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input | Voltage Range | 100-277 VAC | |
| Frequency Range | 47~63HZ | ||
| Power Factor ( Typ.) | PF≧0.99/110V ; PF≧0.98/277V | ||
| THD(Typ. ) @ full load | <10%@120VAC <15%@277VAC | ||
| Full Load Efficiency(Typ.) | 80%@120VAC 81%@277VAC | 80%@120VAC 81%@277VAC | |
| AC Current(Typ.) | 0.5A | ||
| Inrush Current(Typ.) | 13A | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Loading | ≤120% shut down o/p voltage, re-power on to recover | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| Environment | Working TEMP. | -40~+60℃ | |
| Working Humidity | 20~90%RH,non-condensing | ||
| Storage TEM.,Humidity | -40~+80℃,10~95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | UL8750 +UL1310,CAN/CSA-C22.2 No.250.13 | |
| Withstand voltage | I/P-O/P:1.88KVac | ||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | FCC Part 15 B | ||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,,11, , Alight industry level | ||
| Others | Weight | 0.35Kg | |
| Size | 260*32*20mm (L*W*H) | ||
| packing | 50PCS/CTN Carton size: 330*270*130mm | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature. | ||
| 2. Tolerance:includes set us tolerance,line regulation and load regulation . | |||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | |||
Dimming Operation?and Connecting Diagram
??Using two ways of dimming?at the same time, customers should?be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming;
Using one dimming?---TRIAC/Phase cut dimming?
??The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by?connection a phase /Triac dimmer of lighting system.
??Working with forward phase /leading edge ,MLV and Reverse phase /trailing edge ,ELV,TRIAC dimmers?
??Min loading is about 10%
??Please try to use dimmers with power at least 1.5 times as the output power of the driver.
