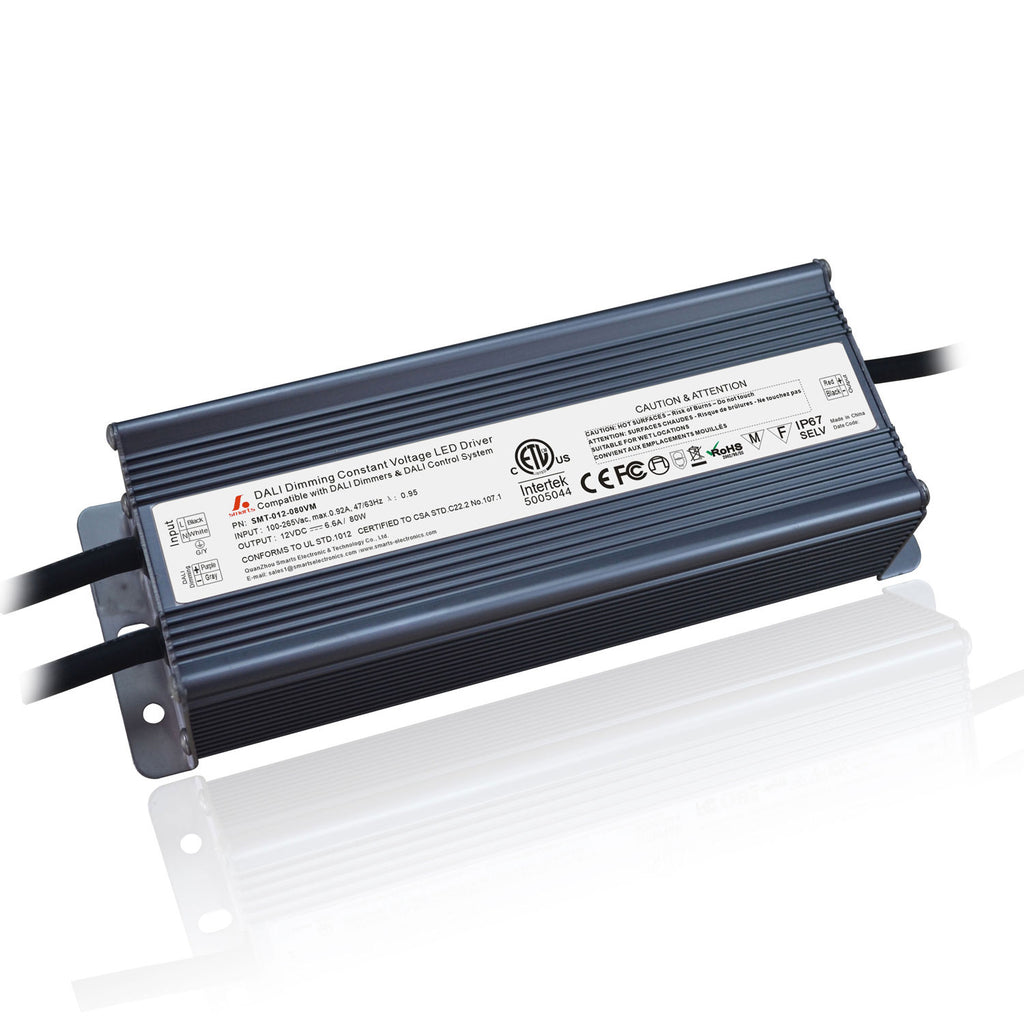

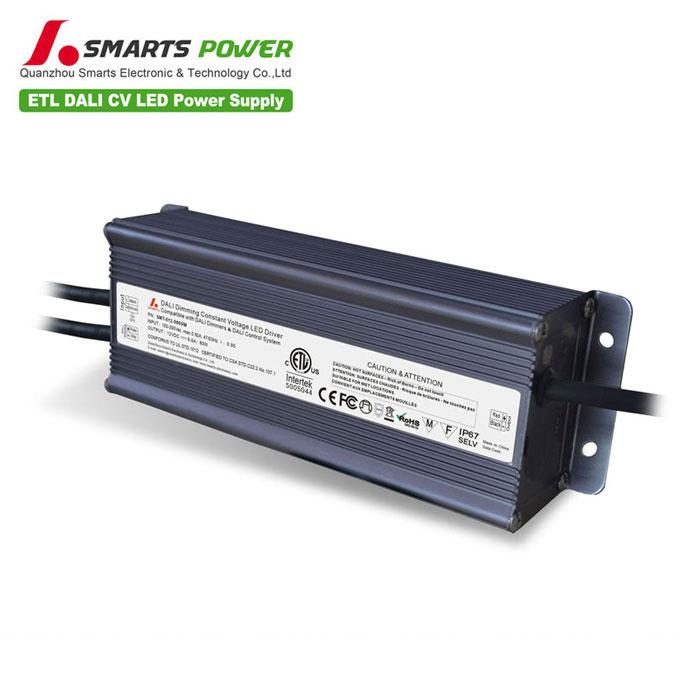

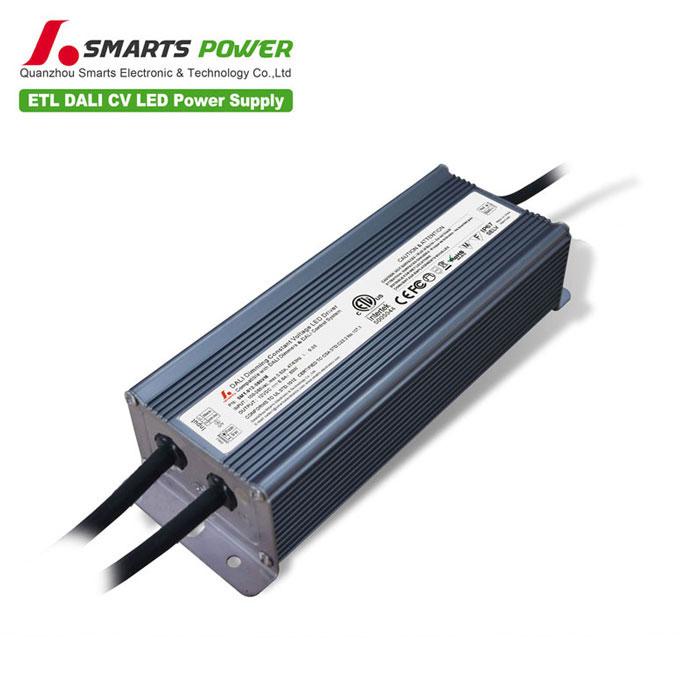

DALI Dimmable Driver 80W (Standard Size)
SMT-012-080VM
DALI Dimmable LED Driver
SMARTS
This ETL listed DALI dimmable led driver comes to flawless dimming and compatible with most Dali dimmers. Smarts Dali dimmers shows 0-100% dimming range and perfect dimming effect.
Model
SMT-01...
This ETL listed DALI dimmable led driver comes to flawless dimming and compatible with most Dali dimmers. Smarts Dali dimmers shows 0-100% dimming range and perfect dimming effect.
| Model | SMT-012-080VM | SMT-024080VM | |
| Output | DC Voltage | 12V | 24V |
| Voltage Tolerance | ±3% | ||
| Rated current | 0~6.6A | 0~3.3A | |
| Rated power | 80W | 80W | |
| Input | Voltage Range | 100-130VAC/170-265VAC | |
| Frequency Range | 47~63HZ | ||
| Power Factor(Typ.) | PF≧0.90/110V / PF≧0.90/220V | ||
| Full Load Efficiency(Typ.) | >88% | >88% | |
| AC Current(Typ.) | 0.92A/110VAC | ||
| Leakage current | ﹤0.5mA/110V , ﹤0.7mA/220VAC | ||
| Protection | Short Circuit | Protection type: Hiccup mode, recovers automatically after fault condition is removed | |
| Over Load | ≦120% | ||
| Over Circuit | ≦1.4*I out | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, re-power on to recover | ||
| Environment | Working TEMP. | -40~+60℃ | |
| Working Humidity | 20~95%RH,non-condensing | ||
| Storage TEM.,Humidity | -40~+80℃,10~95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | EN61347-1 EN61347-2-13 IP67 | |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC | ||
| Isolation resistance | I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | Compliance toEN55015,EN61000-3-2 (≧50%load) | ||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level (surge4KV) | ||
| Others | Weight | 1.1Kg | |
| Size | 200*68*46mm(L*W*H) | ||
| packing | 329*279*176mm/10pcs/CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and 25℃of ambient temperature. | ||
| 2.Tolerance:includes set us tolerance, line regulation and load regulation . | |||
| 3.The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again | |||
¡ùInput Rubber cable H03VV-F 3G 1.0mm2,the green/yellow cable connect with (FG) ,Brown with AC (L),Blue with AC(N)
¡ùSignal Rubber cable H03VV-F 2 ?0.75mm2,Blue is£¨DA1£©,White is£¨DA2£©DALI Non polar£¡Connected to the ?BUS of the DALI Master.
¡ùOutput rubber cable H03VV-F 2 ?1.0mm2,Red is output£¨V+£©Positive,Black is output£¨V-£©negative. Connected to LED Lamps.
Please make sure you connect these correctly otherwise your product will not function correctly or may?be damaged.
