DALI Dimmable Driver 36W (Standard Size)

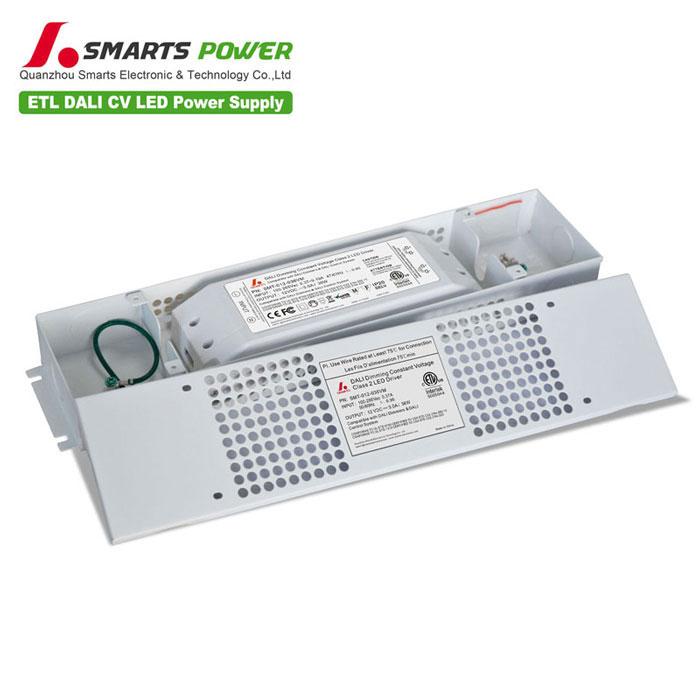

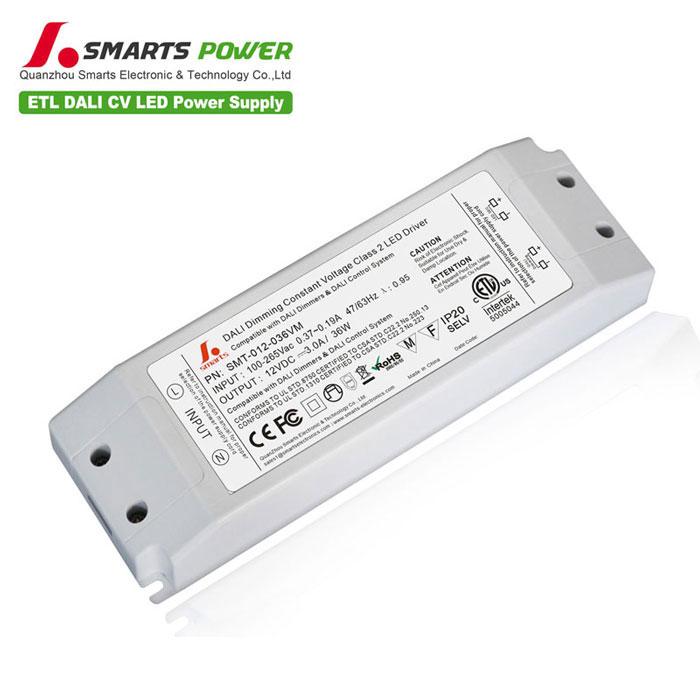

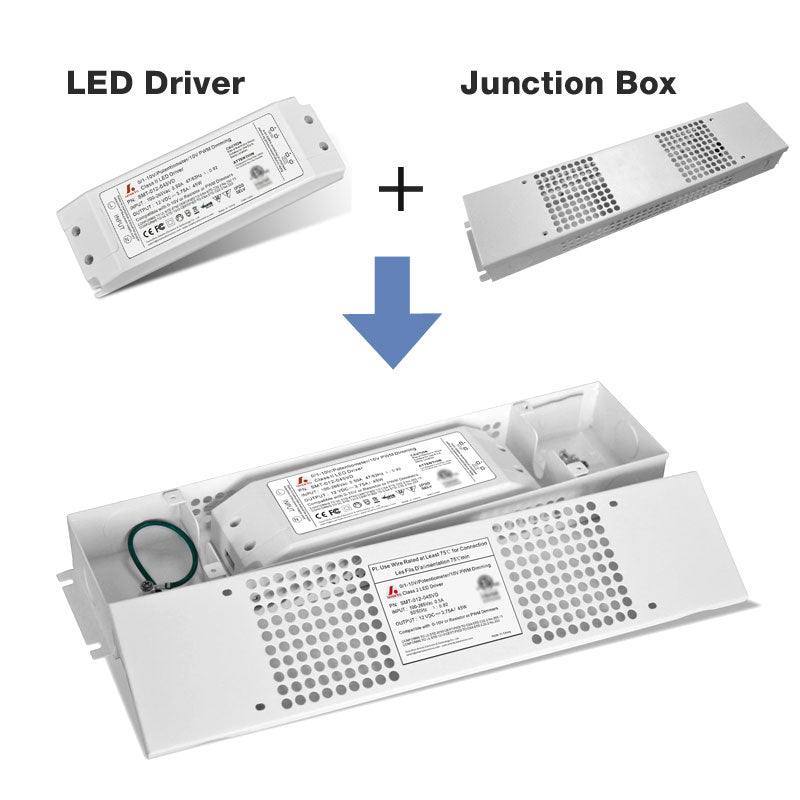

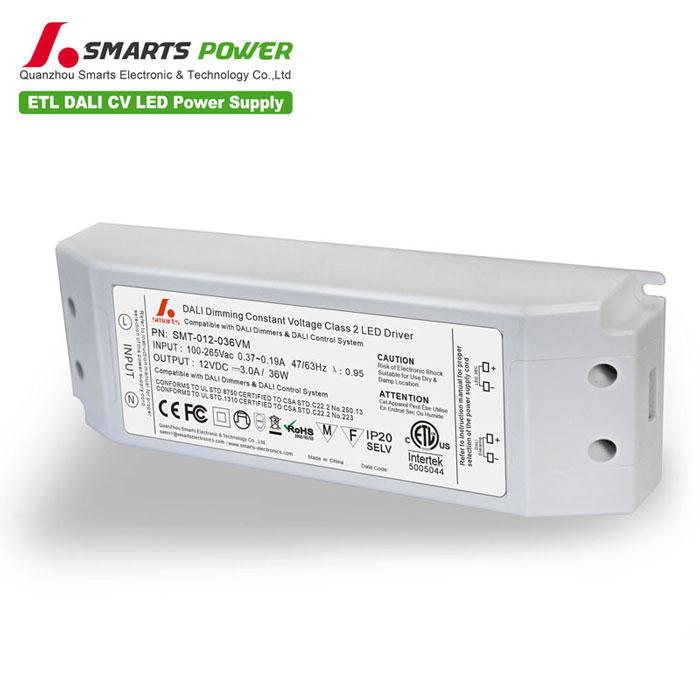

SMT-012-036VM is 24v Dali dimmable led driver power supply 36w 3a, The size is only 180*60*34mm, very light, suitable for installation in places with limited space. This driver can be flexibly designed for dimming, which has more advantages.
| Model | SMT-012-036VM | SMT-024-036VM | ||
| output | DC Voltage | 12V | 24V | |
| Voltage Tolerance | ±0.5V | |||
| Rated current | 0~3.0A | 0~1.5A | ||
| Rated power | 36W | |||
| input | Voltage Range | 100~130VAC, 170~265VAC | ||
| Frequency Range | 47~63HZ | |||
| Power Factor (Typ.) | PF≧0.90/110V / PF≧0.90/220V | |||
| Efficiency(Typ.) | >88% | |||
| AC Current(Typ.) | 0.41A@110VAC | |||
| Leakage current | ﹤0.40mA/110VAC / ﹤0.50mA/220VAC | |||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed | ||
| Over Loading | ≦120% | |||
| Environment | Working TEMP. | -40~+60℃ | ||
| Working Humidity | 20~90%RH, non-condensing | |||
| Storage TEM.,Humidity | -40~+80℃,10~95%RH | |||
| TEMP.coefficient | ±0.03%/℃(0~50℃) | |||
| Vibration | 10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |||
| Safety&EMC | Safety standards | EN61347-1 EN61347-2-13 | ||
| Withstand voltage | I/P-O/P:3.75KVAC | |||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | |||
| EMC EMISSION | EN55015,EN61000-3-2,3 (≧50%loading) | |||
| EMC IMMUNITY | EN61000-4-2,3,4,5,6,11(Surge 4KV) | |||
| Others | Net.Weight | 0.55Kg | ||
| Size | 180*60*34mm(L*W*H) | |||
| packing | 355*215*215mm/20pcs/CTN | |||
| Notes | 1. All parameters NOT specially mentioned are measured at 110V / 220VAC input , rated load and 25℃of ambient temperature. | |||
| 2. Tolerance: includes set us tolerance, line regulation and load regulation . | ||||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again | ||||
¡ùInput with Live Wire(L) ?Neutral Wire (N)
¡ùOutput LED SEC output Positive(LED+),output negative(LED-).Connected to LED Lamps.
¡ùSignal Dimming (DA1), (DA2) DALI Non polar!Connected to the ?BUS of the DALI? ? Master.
¡ù When installing the LED driver and making input and output connections,?cross-section area of conductor for input and output terminal block:0.75mm2(cord type: H03VVH2-F or H03VV-F).
¡ùPlease make sure you connect these correctly otherwise your product will not? ? ? ? function correctly and could be damaged.
?
