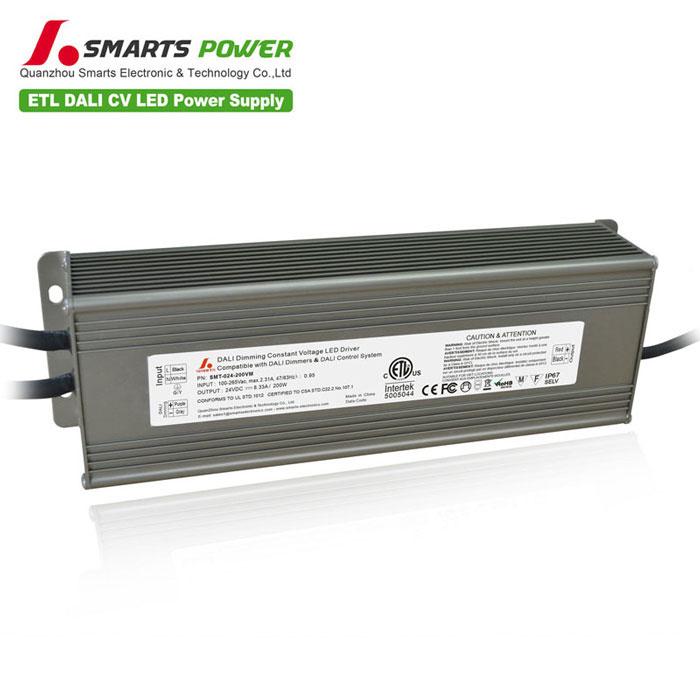

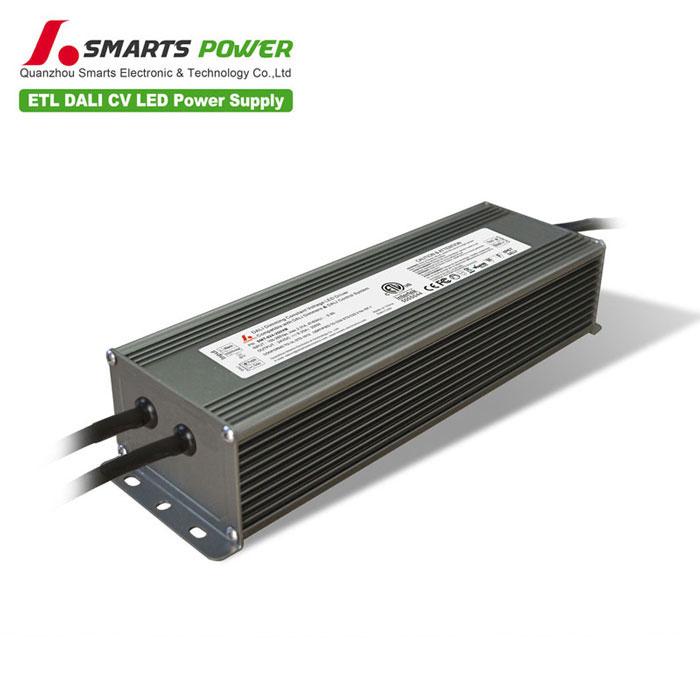

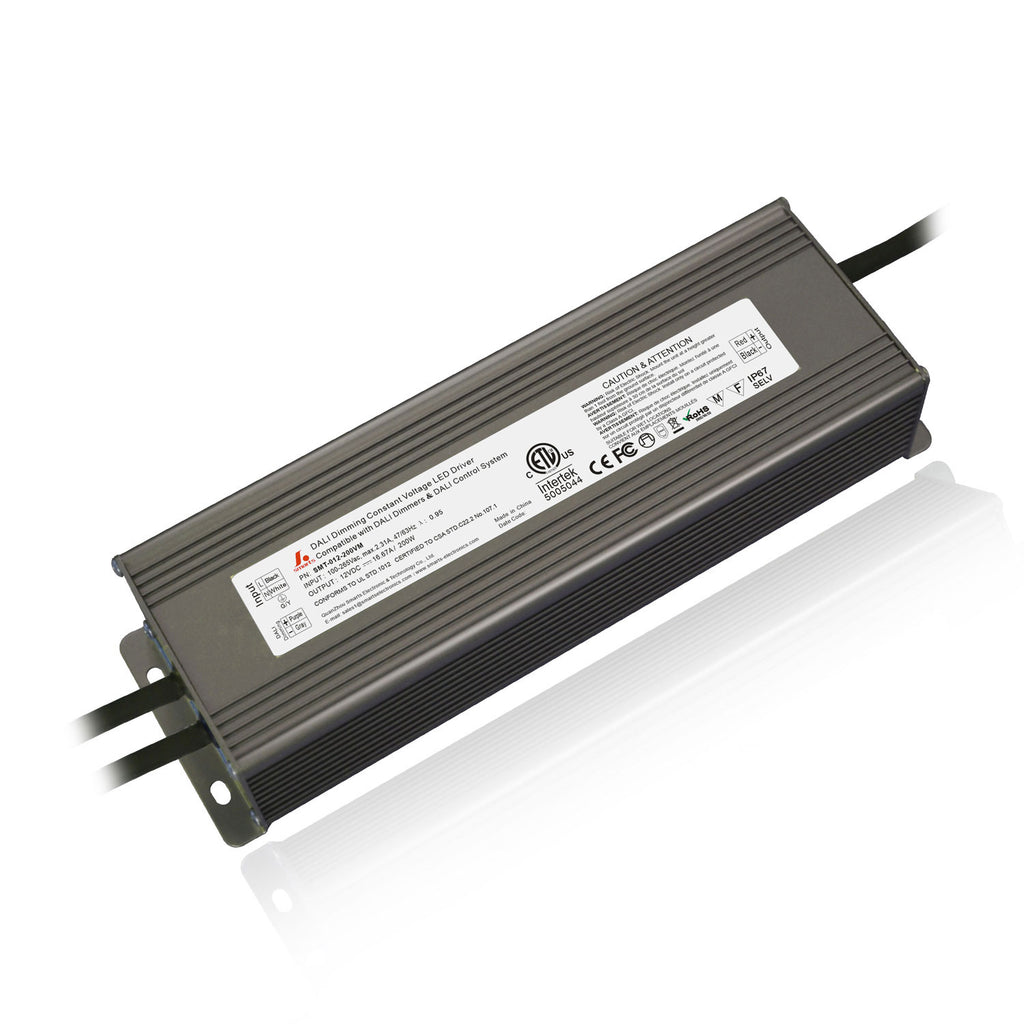

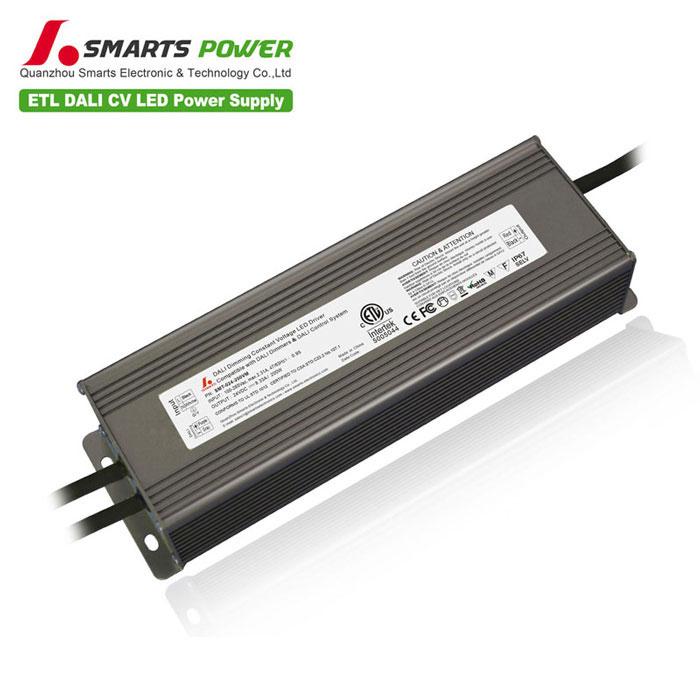

DALI Dimmable Driver 200W (Standard Size)
SMT-012-200VM
DALI Dimmable LED Driver
SMARTS
SMT-012-200VM With ETL CE ROHS certification, A complete certificate can meet the needs of the North American and European markets, This 12 volt Dali led dimmable transformer driver 200W With short...
SMT-012-200VM With ETL CE ROHS certification, A complete certificate can meet the needs of the North American and European markets, This 12 volt Dali led dimmable transformer driver 200W With short circuit and overload protection functions,
| Model | SMT-012-200VM | SMT-024-200VM | |
| Output | DC Voltage | 12VDC | 24VDC |
| Voltage Accuracy | ±0.5V | ||
| Rated current | 0~16.67A | 0~8.33A | |
| Rated power | 200W | 200W | |
| Input | Voltage Range | 100-265VAC | |
| Frequency Range | 47~63HZ | ||
| Power Factor ( Typ.) | PF≧0.90/100V, PF≧0.90/220V | ||
| Full Load Efficiency(Typ.) | >88%/110, 220V | >88%/110, 220V | |
| AC Current(Typ.) | 2.30A/110VAC | 1.15A@220VAC | |
| Leakage current | ﹤0.72mA/110VAC, ﹤0.74mA/220VAC | ||
| Protection | Short Circuit | Protection type: Hiccup mode, recovers automatically after fault condition is removed | |
| Over Current | ≦1.4*I out | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, re-power on to recover | ||
| Environment | Working TEMP. | -40~+50℃ | |
| Working Humidity | 20~95%RH,non-condensing | ||
| Storage TEM.,Humidity | -40~+80℃,10~95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | EN61347-1 EN61347-2-13 IP67 | |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC | ||
| Isolation resistance | I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | Compliance toEN55015,EN61000-3-2 (≧50%load) | ||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level (surge4KV) | ||
| Others | Weight | 1.8Kg | |
| Size | 250*79*52mm(L*W*H) | ||
| packing | 355*215*215mm/10pcs/CTN / 240*70*50 mm for inner box | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and 25℃of ambient temperature. | ||
| 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. | |||
| 3. Tolerance:includes set us tolerance,line regulation and load regulation . | |||
¡ùInput Rubber cable ?H03VV-F 3G 1.0©O£¬the green/yellow cable connect with (FG)£¬Black with AC (L),Red or Green?with AC(N)
¡ùInput with Live Wire(L) ?Neutral Wire (N)
¡ùOutput LED SEC £¨LED+£©,£¨LED-£©
¡ùSignal Dimming £¨DA1£©, (DA2)
?
