ELV/Triac Dimmable Electronic Transformer 96W (VTB)
SET-24096B
Triac Dimmable LED Driver
Smarts Power
96W 24V triac dimmable led electronic transformer with 120vac input, operating mode constant voltage, working efficiency up to 86%, aluminum housing, quick heat dissipation and easy installation, o...
96W 24V triac dimmable led electronic transformer with 120vac input, operating mode constant voltage, working efficiency up to 86%, aluminum housing, quick heat dissipation and easy installation, overload and short circuit protection design, 5 year warranty
| Model Number | SET-24096B |
| Output Type | |
| Reted Power | 96W |
| Reted Voltage | 24V |
| Reted Current | 4A |
| Voltage Tolerance | ±0.5V |
| Voltage Regulation | ±0.5% |
| Load Regulation | ±1% |
| Input Type | |
| Voltage Range | 120V |
| Frequency Range | 47-63HZ |
| Efficiency(Typ.) | 86%@120VAC |
| Total Harmonic Distortion | THD< 20%(@100% load) |
| Power Factor(typ.) | 0.98@120VAC |
| AC Current(Typ.) | 0.92A |
| Inrush Current(Typ.) | - |
| Leakage Current | <0.5mA/ 120VAC |
| PROTECTION | |
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. |
| Over Load | Hiccup mode, recovers automatically after fault condition is removed. |
| ENVIRONMENT | |
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
| Working humidity | 20 ~ 95% RH non-condensing |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH |
| Temp .coefficient | ±0.03%/℃(0~50℃) |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
| SAFETY & EMC | |
| Safety standards | UL8750, Class 2 |
| Safety standards | I/P-O/P:1.88KVAC |
| OTHERS | |

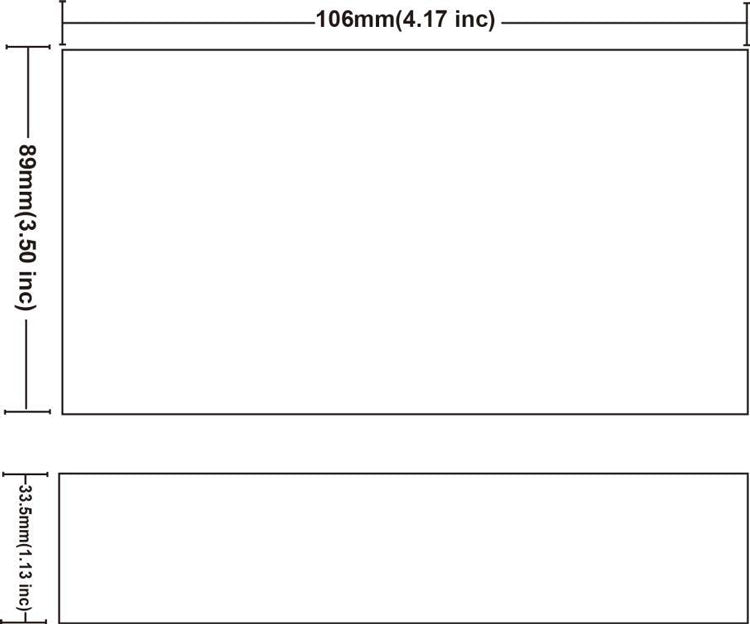

| Dimension | 4.17x3.50x1.31 inch (L*W*H) |
| Packing | - |
