UL Class 2 Non-Dimmable J-Box Driver 180W
SMT-012-180VWJ2
Non-dimmable LED Driver
SMARTS
J-BOX 12V led strip driver 180W with multi- output 3*5A. it is more stable high LED power supply 180W With short circuit / overload / over voltage / high temp function.
Model
SMT-012-180VWJ2 (1...
J-BOX 12V led strip driver 180W with multi- output 3*5A. it is more stable high LED power supply 180W With short circuit / overload / over voltage / high temp function.
| Model | SMT-012-180VWJ2 (1.0 version) SMT-012-180VWJ2V2 (2.0 version) SMT-012-180VWJ2WV2 (3.0 version) |
SMT-024-192VWJ2 (1.0 version) SMT-024-192VWJ2V2 (2.0 version) SMT-024-192VWJ2WV2 (3.0 version) |
|
| Output | DC Voltage | 12V | 24V |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ±1% | |
| Rated current | 3*5A | 2*4A | |
| Rated power | 180W(3*60W) | 192W (2*96W) | |
| Input | Voltage Range | 100-277VAC | |
| Frequency Range | 47-63Hz | ||
| Power Factor(Typ.)@ full load | 0.99@120VAC 0.94@277VAC | 0.99@120VAC 0.94@277VAC | |
| THD(Typ.)@ full load | <20% | <20% | |
| Efficiency(Typ.)@ full load | 87%@120V 89%@277VAC | 88%@120V 90%@277VAC | |
| AC Current(Max.) | 2.2A@100VAC | 2.3A@100VAC | |
| Inrush Current (Typ.) | 19A ,50%,1.3ms @120VAC ; 38A,50%,960us @277VAC 12.4A (twidth=430us) @277VAC | ||
| Leakage current | <0.50mA | ||
| Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over Loading | ≤120% Hiccup mode ,recovers automatically after fault condition is removed | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | |
| Working Humidity | 20~90%RH, non-condensing | ||
| Storage TEMP. Humidity | -40~+80℃,10~95%RH | ||
| TEMP .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| Safety& EMC | Safety standards | UL8750+UL1310 | |
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | FCC 47 CFR Part 15 ,Subpart B | ||
| Others | Weight | 2.0Kg (1.0 version) | |

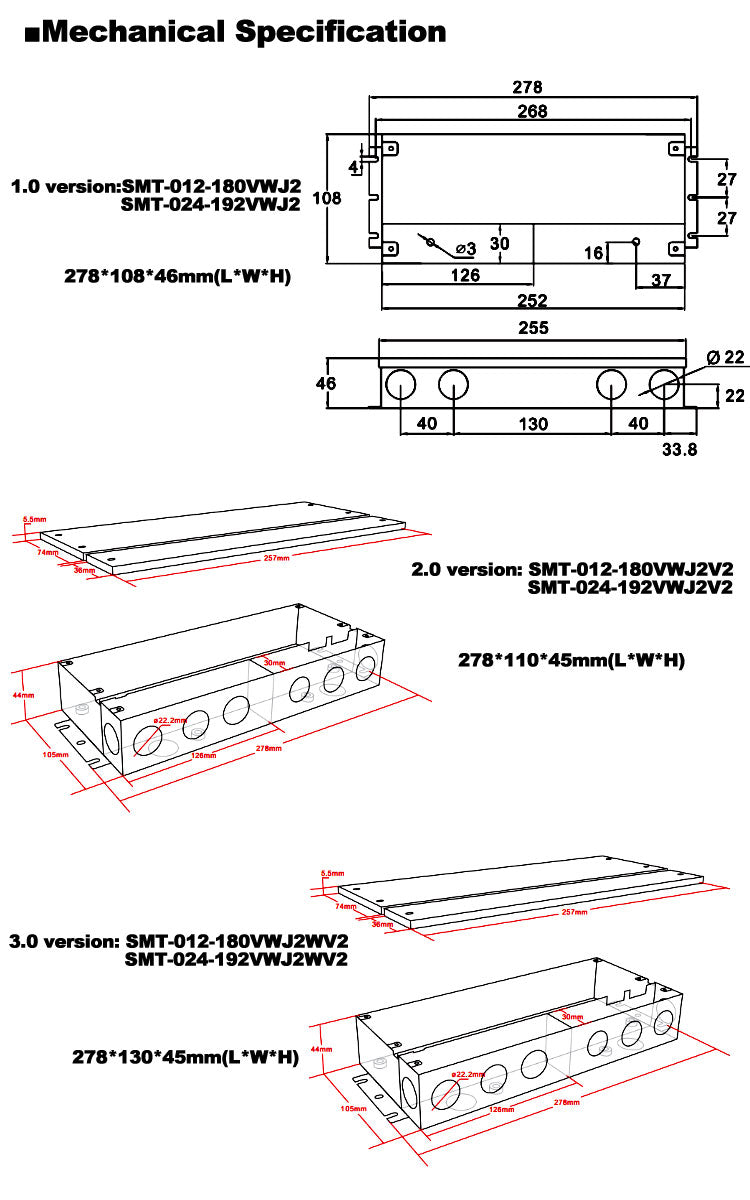

| Size | 1.0 version:278*108*46mm / 2.0 version:278*110*45mm 3.0 version:278*130*45mm | ||
| packaging | 285*275*245mm/10pcs /CTN / G.W.:22.10KG/CTN (1.0 version) | ||
| 385*335*200mm 20PCS/CTN | |||
| Notes | 1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. | ||
| 2. To extend the driver's using life ,please reduce the loading at lower input voltage. | |||

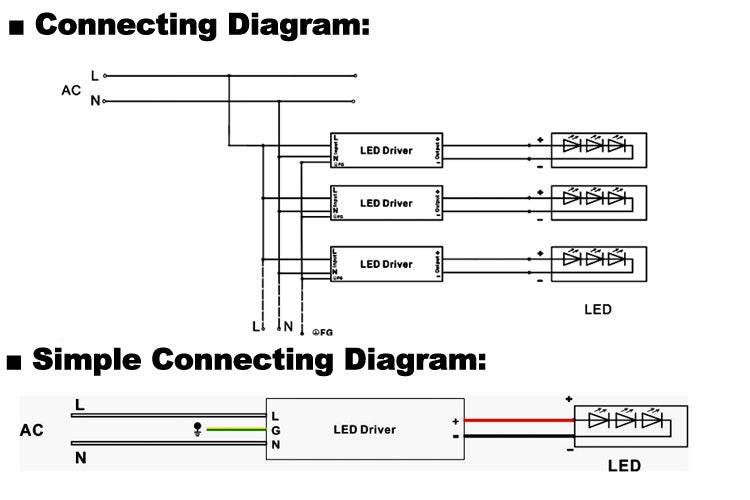

Input:18AWG?Black and White to be connected to AC L and N ,Green wire go ground,
Output cable 2*16AWG,Red" (+) to LED Positive side (+) , "Black"(-) to LED Negative side (-).
Class 2 standard output terminal. Three groups of cables for SMT-012-180VWJ2, SMT-012-180VWJ2V2, SMT-012-180VWJ2WV2,; Two groups for SMT-024-192VWJ2,SMT-024-192VWJ2V2,SMT-024-192VWJ2WV2
