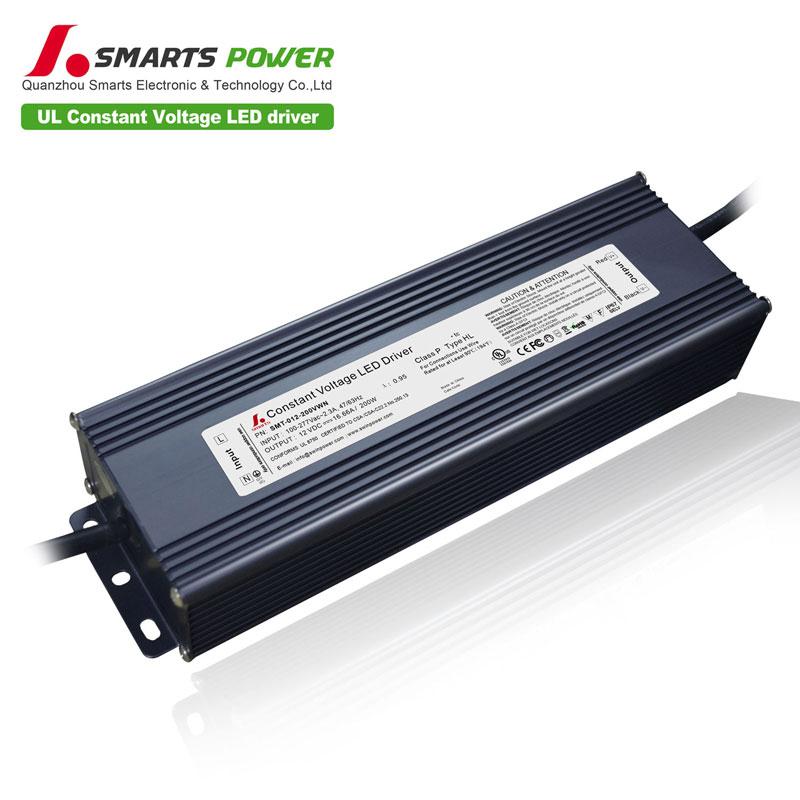

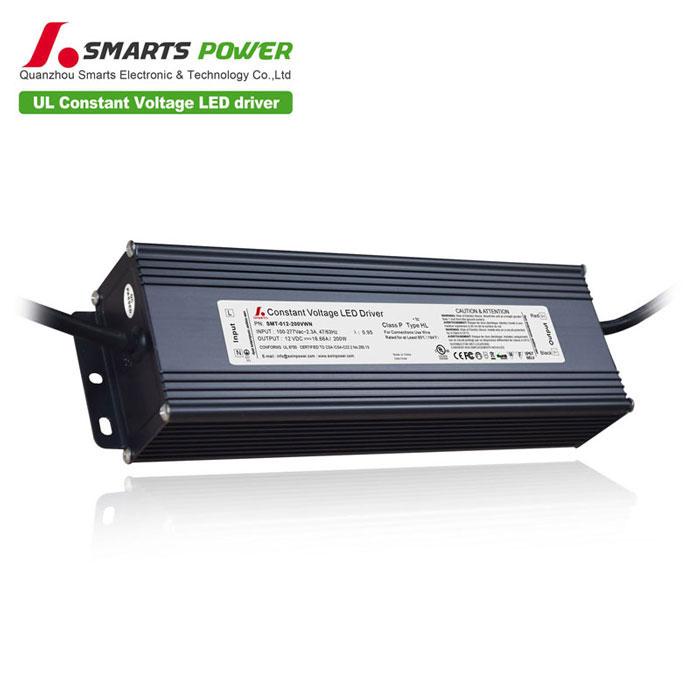

UL Non-Dimmable Driver 200W
SMT-012-200VWN
Non-dimmable LED Driver
SMARTS
Waterproof led power supply 12v 200w High quality, can replace a variety of brand led power supplies 200W, make the lamps work more stable, and improve the service life of the lamps.
model
SMT-...
Waterproof led power supply 12v 200w High quality, can replace a variety of brand led power supplies 200W, make the lamps work more stable, and improve the service life of the lamps.
| model | SMT-012-200VWN | SMT-024-200VWN | |
| Output | DC Voltage | 12V | 24V |
| Voltage Accuracy | ±0.5V | ±0.5V | |
| Rated current | 16.66A | 8.33A | |
| Rated power | 200W | 200W | |
| Input | Voltage Range | 100~277V AC | |
| Frequency Range | 47~63HZ | ||
| THD(Typ.) @full load | <20% | ||
| Power Factor ( Typ.) | 0.98@120VAC 0.98@277VAC | 0.97@120VAC 0.97@277VAC | |
| Full Load Efficiency(Typ.) | >86% | >86% | |
| AC Current(Typ.) | 2.3A/110VAC | ||
| Inrush Current (Typ.) | 15A, 50%, 1.4ms@120VAC; 55A,50%220us@230VAC; 30A,50%1.4ms@277VAC | ||
| Leakage current | ﹤0.5mA/110V | ||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition | |
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| Over Loading | ≤120% constant current limiting, auto-recovery | ||
| Over voltage | ≦140VAC(90~135V) , ≦270VAC(170~265V) | ||
| Environment | Working TEMP. | -40~+60℃ | |
| Working Humidity | 20~90%RH,non-condensing | ||
| Storage TEM.,Humidity | -40~+80℃,10~95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz,2G 10min./1 cycle,period for 60min. | ||
| Safety&EMC | Safety standards | UL8750 | |
| Withstand voltage | I/P-O/P: 1.90KVAC | ||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | FCC Part 15 B | ||
| EMC IMMUNITY | Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547 | ||
| Others | Net Weight | 1.5Kg | |
| Size | 256*78*47mm (L*W*H) | ||
| packing | 329*279*176mm , 10PCS/ctn | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature. | ||
| 2. Tolerance:includes set us tolerance,line regulation and load regulation . | |||
