Bluetooth Dim CV LED Driver 150w (IP67)
The Bluetooth wireless dimmable led power supply 150w is with 8KHz PWM output; The minimum dimmability is 1%. The dimming range is 1%-100%. It works well with lighting cabinet lights.
Model | SMT-B-12150-YC-A | SMT-B-24150-YC-A | |
Y=1 , 2, 3, 4, 5 for DIM (DW); CCT(TW); RGB; RGBW; RGBW+CCT (RGBCW) | |||
Output | DC Voltage | 12V | 24V |
Voltage Tolerance | ±0.5V | ||
Voltage Regulation | <1% | ||
Rated current | CH1+CH2+CH3+CH4+CH5=12.5A | CH1+CH2+CH3+CH4+CH5=6.25A | |
Rated power | 150W | ||
Load Regulation | <1% | ||
Input | Voltage Range | 100-277VAC | |
Frequency Range | 47 - 63Hz | ||
PowerFactor(Typ.)@ full load | PF≥0.98/ 230VAC (Full loading) | ||
THD(Typ.)@ full load | <15% | ||
Efficiency(Typ.)@ full load | 91% @230VAC 89% @120VAC | ||
AC Current(Max.) | 1.80A | ||
InrushCurrent (Typ.) | 35.2A (Twidth 510us measured at 50% I peak, COLD START, 230VAC) | ||
Leakage current | <0.5mA | ||
Protection | Short Circuit | Hiccup mode, recover automatically after fault condition is removed | |
Over Load | ≤120% ,hiccup mode, recover automatically after fault condition is removed | ||
Over temperature | ≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop | ||
Protection Class | II | ||
Environment | Working TEMP. | -40~+60℃ (see below derating curve) | |
Working Humidity | 20 - 95%RH ,non-condensing | ||
StorageTEM.,Humidity | -40 - +80℃,10 - 95%RH | ||
TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
Safety & EMC | Safety standards | EN61347-1 EN61347-2-13 (EU) & UL8750 UL1310 (US) | |
Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC (EU) & I/P-O/P:1.5KVAC(US) | ||
Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
EMC Emission | EN55015 EN61000-3-2 EN61000-3-3 (EU) & FCC Part 15 B (US) | ||
EMC Immunity | EN61000-4-2,3,4,5,6,11 EN61547 | ||
Others | Net Weight | 1.2KG | |

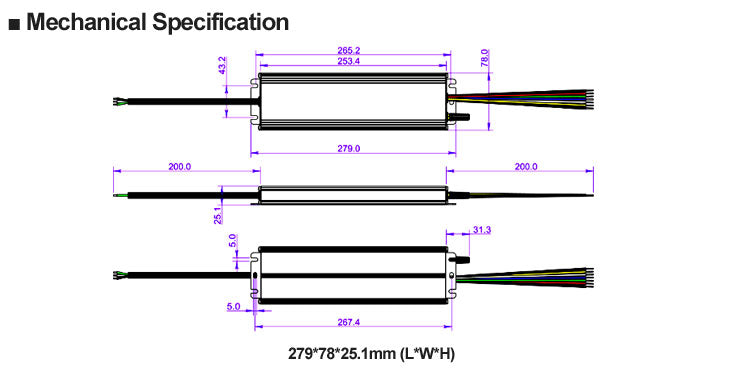

Dimension | 279*78*25.1mm (L*W*H) | ||
packing | |||
Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. | ||
2. Tolerance: includes set up tolerance, line regulation and load regulation . | |||
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
※Input terminal with 3P; Live Wire(L) , Neutral Wire (N) . Note: vacant for middle terminal
Suggested wire diameter: Primary 0.75-2.5mm² (18-14 AWG); Secondary 0.5-2.5mm² (20-14 AWG)
※Output terminals with 6P; LED SEC positive (LED+), LED negative (LED-). Connected to LED light; Common anode design
2P for DIM (DW) dimming;
3P for CCT (TW) dimming;
4P for RGB dimming;
5P for RGBW dimming;
6P for RGB+CCT dimming.
※Please make sure you connect these correctly ,otherwise your product will not work correctly and could be damaged.
