Bluetooth Dim CV LED Driver 100w (IP67)
The bluetooth dimmable 12V driver 100w is water-resistant for indoor and outdoors lighting. With high efficiency >0.87 and high power factor 0.95.
| Model | SMT-B-12100-YC-A | SMT-B-24100-YC-A | |
| Y=1 , 2, 3, 4, 5 for DIM (DW); CCT(TW); RGB; RGBW; RGBW+CCT (RGBCW) | |||
| Output | DC Voltage | 12V | 24V |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Rated current | CH1+CH2+CH3+CH4+CH5=8.3A | CH1+CH2+CH3+CH4+CH5=4.17A | |
| Rated power | 100W | ||
| Load Regulation | ±2% | ||
| Input | Voltage Range | 100-277VAC | |
| Frequency Range | 47 - 63Hz | ||
| PowerFactor(Typ.)@ full load | PF≥0.98/ 230VAC (Full loading) | ||
| THD(Typ.)@ full load | <15% | ||
| Efficiency(Typ.)@ full load | 89% @230VAC | 89%@230VAC | |
| AC Current(Max.) | 1.25A | 1.25A | |
| Inrush Current (Typ.) | 53A (Twidth 250us measured at 50% I peak, COLD START, 230VAC) | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | Hiccup mode, recover automatically after fault condition is removed | |
| Over Load | ≤120% ,hiccup mode, recover automatically after fault condition is removed | ||
| Over temperature | ≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop | ||
| Protection Class | II | ||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | |
| Working Humidity | 20 - 95%RH ,non-condensing | ||
| StorageTEM.,Humidity | -40 - +80℃,10 - 95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13 (EU) & UL8750 UL1310 (US) | |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC (EU) & I/P-O/P:1.5KVAC(US) | ||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
| EMC Emission | EN55015 EN61000-3-2 EN61000-3-3 (EU) & FCC Part 15 B (US) | ||
| EMC Immunity | EN61000-4-2,3,4,5,6,11 EN61547 | ||
| Others | Net Weight | 0.90KG | |

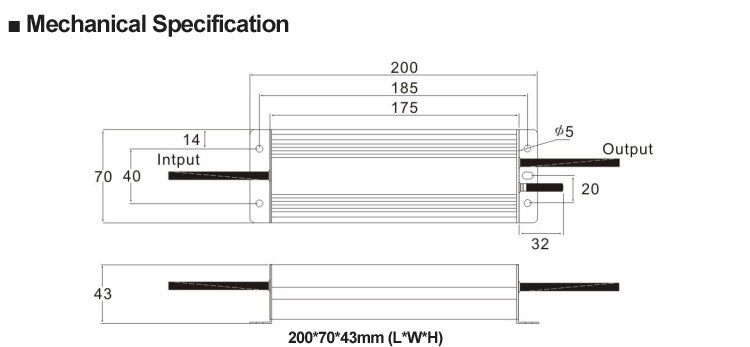

| Dimension | 200*70*43mm (L*W*H) | ||
| packing | 340*275*170mm/10PCS/CTN G.W.:11.3KG/CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. | ||
| 2. Tolerance: includes set up tolerance, line regulation and load regulation . | |||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | |||
※Input Rubber cable 3*1.0mm2 (VDE approval), the Y/G cable connect with (FG) , Brown with AC (L), Blue with AC(N) (EU)
Input SJOW Rubber cable 3*18AWG (UL approval), the green cable connect with (FG) ,Black with AC (L), White with AC(N) (US)
※Output cable to be connected to LED Light;
DIM (DW) dimming: Rubber cable
Black is output ( V+) Positive, White is output (V-) negative
CCT (TW) dimming: 1015 electronic cable , (V+) 16AWG; (V-) 18AWG
Black is output ( V+) Positive, While (CW-) and Yellow (WW-) are output (V-) negative
RGB dimming: 1015 electronic cable , (V+) 16AWG; (V-) 18AWG
Black is output ( V+) Positive, Red (R-), Green (G-) and Blue (B-) are output (V-) negative
RGBW dimming: 1015 electronic cable , (V+) 16AWG; (V-) 18AWG
Black is output ( V+) Positive, Red (R-), Green (G-) ,Blue (B-) , White (W-) are output (V-) negative
RGB+CCT dimming: 1015 electronic cable , (V+) 16AWG; (V-) 18AWG
Black is output ( V+) Positive, Red (R-), Green (G-) ,Blue (B-) , While (CW-) and Yellow (WW-) are output (V-) negative.;
※Please make sure you connect these correctly ,otherwise your product will not work correctly and could be damaged.
Note: 1. there is external antenna at output side. Don't disassemble!
2.Please make sure you connect these correctly ,otherwise your product will not work correctly and could be damaged.

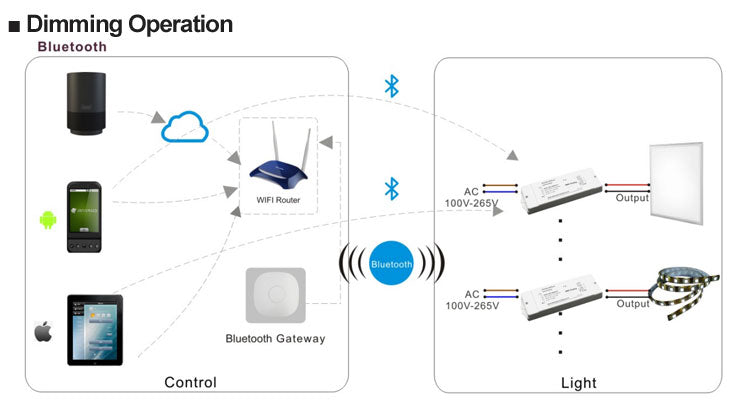

1. Bluetooth dimmable driver could be controlled by Mobile App
※ Use mobile phone to scan the QR code below or download“Smart Life”from the Apple store or Android market.
2. Bluetooth dimmable driver could be controlled by Smart Speaker, like Google home or Amazon echo
※ Google home
1) Configure Google Home app through "Google Home" in App Store or Google Play to install the app.
2)Set up Google Home and configure in Home Control
3) Add devices in Smart Life app (Refer to App Instruction)
4) Link Smart Life account in Home Control
then Bluetooth dimmable driver could be controlled through Google home.
For detailed operation, please refer to Quick Guide of Using Google Home to Control Smart Devices from our official website www.swinpower.com .
※ Amazon echo
1) configure Echo through web or Amazon Alexa app in App Store or Google Play to install the app.
Web configuration link: http://alexa.amazon.com/spa/index.html
2) Set up Amazon Echo and enable Smart Life Skill
3) Add devices in Smart Life app (Refer to App Instruction)
4) Link Smart Life account to Alexa
5) Discover devices which have already been added in the Smart Life app
then Bluetooth dimmable driver could be controlled through Echo.
For detailed operation, please refer to Quick Guide of Using Amazon Echo to Control Smart Devices from our official website www.swinpower.com .
