DMX512 Dim CV LED drivers 60w (IP20)
Smarts DMX driver has the option for 60w with 1-5 channels. Available at 12VDC, 24VDC and 48VDC. Designed with 100-277VAC for North American. 7 years warranty are guaranteed.
| Model | SMT-12060-XC-P | SMT-24060-XC-P | |
| X=1 , 2 for DIM (DW); CCT(TW) | |||
| Output | DC Voltage | 12V | 24V |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Rated current | CH1+CH2=5A | CH1+CH2=2.5A | |
| Rated power | 60W (class 2 power units) | ||
| Load Regulation | ±2% | ||
| Input | Voltage Range | 100-277VAC | |
| Frequency Range | 47 - 63Hz | ||
| Power Factor(Typ.)@ full load | PF≥0.98/ 230VAC (Full loading) | ||
| THD(Typ.)@ full load | <15% @120V 230V 277V | ||
| Efficiency(Typ.)@ full load | 89% @230VAC | 87%@230VAC | |
| AC Current(Max.) | 0.8A | 0.8A | |
| Inrush Current (Typ.) | 36.4A,164us@50%Ipeak | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | Hiccup mode, recover automatically after fault condition is removed | |
| Over Load | ≤120% ,hiccup model, recover automatically after fault condition is removed | ||
| Over temperature | ≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop | ||
| Protection Class | II | ||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | |
| Working Humidity | 20 - 90%RH ,non-condensing | ||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Vibration | 10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | EN61347-1 EN61347-2-13 (EU) & UL8750 UL1310 (US) | |
| Withstand voltage | I/P-O/P:3.75KVAC (EU) & I/P-O/P:1.5KVAC (US) | ||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
| EMC Emission | EN55015 EN61000-3-2 EN61000-3-3 (EU) & FCC Part 15 B (US) | ||
| EMC Immunity | EN61000-4-2,3,4,5,6,11 EN61547 | ||
| Others | Net Weight | 0.35KG | |

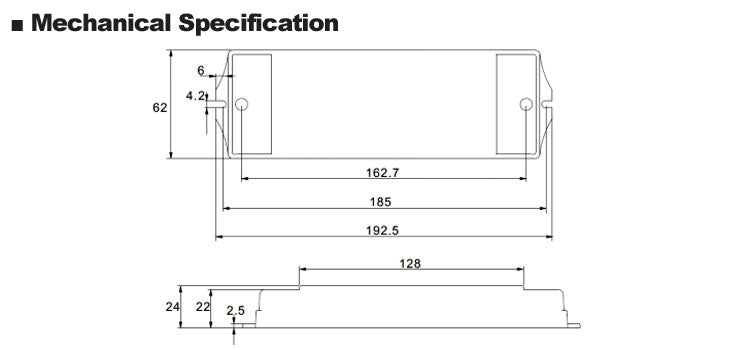

| Dimension | 192.5*62*24mm (L*W*H) | ||
| packing | 290*215*140mm/20PCS/CTN G.W.:8.3KG/CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. | ||
| 2. Tolerance: includes set up tolerance, line regulation and load regulation . | |||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | |||
※Input terminal with 3P; Live Wire(L) , Neutral Wire (N) . Note: vacant for middle terminal
Suggested wire diameter: Primary 0.75-2mm² (18-14 AWG); Secondary 0.5-2mm² (20-14 AWG)
※Output terminals with 6P; LED SEC positive (LED+), LED negative (LED-). Connected to LED light; Common anode design
2P for DIM (DW) dimming;
4P for CCT (TW) dimming with two LED positive pole
※Please make sure you connect these correctly ,otherwise your product will not work correctly and could be damaged.
Note: there is external antenna at output side. Don't disassemble!
※The default address for the DMX driver is 001.
※Address settings device:
※Address settings:
① RDM setting address:
Set the address by the RDM device. For detailed operation, please refer to RDM device instruction manual.
② NFC setting address:
The DMX address can be read and written by a mobile with Easy NFC APP or NFC handheld device (NFC read & write device: NFC-RW) by close to the NFC signal area of the DMX512 driver.
■ Adjust output voltage Operation
※Adjust output voltage slightly for DMX512 driver
1) The driver output voltage can be read and written by a mobile with Easy NFC APP or NFC handheld device (NFC read & write device: NFC-RW) by close to the NFC signal area of the DMX512 driver.
2) Voltage range: level 1~10, each level is 0.2V. The default output voltage level is 5. Such as SMT-24030-XC-P, default is level 5 corresponding to 24V. By adjusting output voltage slightly, you could get 23.2v to 25V freely.
■ See figure below
Simple operation about DMX512 address reset and adjusting output voltage slighting by a mobile with Easy NFC APP or NFC handheld device (NFC read & write device: NFC-RW)
