0-10V Dimmable Driver 200W (Standard Size)
SMT-012-200VD
0-10V Dimmable LED Driver
SMARTS
smarts 12v dimmable 200w led driver is 0 10v constant voltage Dimming mode. This powerful 0-10v 200W model is very suitable for lamps that require continuous operation, Its appearance is completely...
smarts 12v dimmable 200w led driver is 0 10v constant voltage Dimming mode. This powerful 0-10v 200W model is very suitable for lamps that require continuous operation, Its appearance is completely sealed to block dust and water, so it is very suitable for outdoor work mode. With a five-year warranty.
| Model | SMT-012-200VD | SMT-024-200VD | |
| Output | DC Voltage | 12V | 24V |
| Voltage Accuracy | ±0.5V | ||
| Rated current | 0~16.67A | 0~8.33A | |
| Rated power | 200W | 200W | |
| Input | Voltage Range | 100-265VAC | |
| Frequency Range | 47~63HZ | ||
| Power Factor ( Typ.) | PF≧0.90/120V / PF≧0.90/220V | ||
| Full Load Efficiency(Typ.) | >88%(120V)/ >88%(220V) | >88%(120V) / >88%(220V) | |
| AC Current(Typ.) | 2.104A@120V | 1.148A@220V | |
| Leakage current | ﹤0.9mA/120VAC / ﹤0.7mA/220VAC | ||
| Protection | Short Circuit | Protection type: Hiccup mode, recovers automatically after fault condition is removed | |
| Over voltage | ≦150VAC / ≦280VAC | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, re-power on to recover | ||
| Environment | Working TEMP. | -40~+50℃ | |
| Working Humidity | 20~95%RH,non-condensing | ||
| Storage TEM.,Humidity | -40~+80℃,10~95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | EN61347-1 EN61347-2-13 IP67 | |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC | ||
| Isolation resistance | I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | Compliance toEN55015,EN61000-3-2 (≧50%load) | ||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level | ||
| Others | Weight | 1.8Kg | |

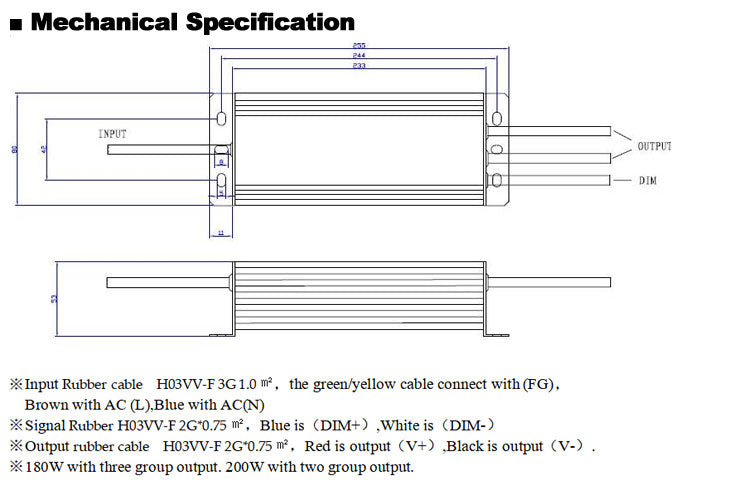

| Size | 255*80*53mm(L*W*H) | ||
| packing | 440*295*145mm/8pcs/CTN 265*98*55 mm for inner box | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 220VAC input , rated load and 25℃of ambient temperature. | ||
| 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. | |||
| 3. Tolerance:includes set us tolerance,line regulation and load regulation . | |||
