Slim Size 5 in 1 Dimmable LED Driver 150W (IP67)
SMT-012-150VTDSW is a 5 in1 12v waterproof dimming led driver power supply 150w ip67 With short circuit and overload protection, Passed UL/cUL certification. Ultra-thin and waterproof performance enables it to adapt to small and humid working environments.
| model | SMT-012-150VTDSW | SMT-024-150VTDSW | |
| Output | DC Voltage | 12VDC | 24VDC |
| Voltage Accuracy | ±5% | ±5% | |
| Rated current | 12.5Amp | 6.25Amp | |
| Rated power | 150W | 150W | |
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input | Voltage Range | 100-277 VAC | |
| Frequency Range | 47~63HZ | ||
| THD(Typ. ) @ full load | <10%@120VAC <15%@277VAC | ||
| Power Factor ( Typ.) | 0.98@120VAC 0.99@277VAC | ||
| Full Load Efficiency(Typ.) | 84%@120VAC 87%@277VAC | 85%@120VAC 88%@277VAC | |
| AC Current(Typ.) | 1.30A | ||
| Inrush Current(Typ.) | 27.0A | ||
| Leakage current | <0.50mA | ||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Loading | ≤120% , Hiccup mode, recovers automatically after fault condition is removed. | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| Environment | Working TEMP. | -40~+60℃ | |
| Working Humidity | 20~90%RH,non-condensing | ||
| Storage TEM.,Humidity | -40~+80℃,10~95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | UL8750 | |
| Withstand voltage | I/P-O/P:3.75KVac | ||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | FCC 47 CFR Part 15 ,Subpart B | ||
| Others | Weight | 0.75Kg | |
| Size | 368*32*23mm(L*W*H) | ||
| packing | Carton size: 360*27*17.5mmmm 30pcs /CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature. | ||
| 2. Tolerance:includes set us tolerance,line regulation and load regulation . | |||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | |||

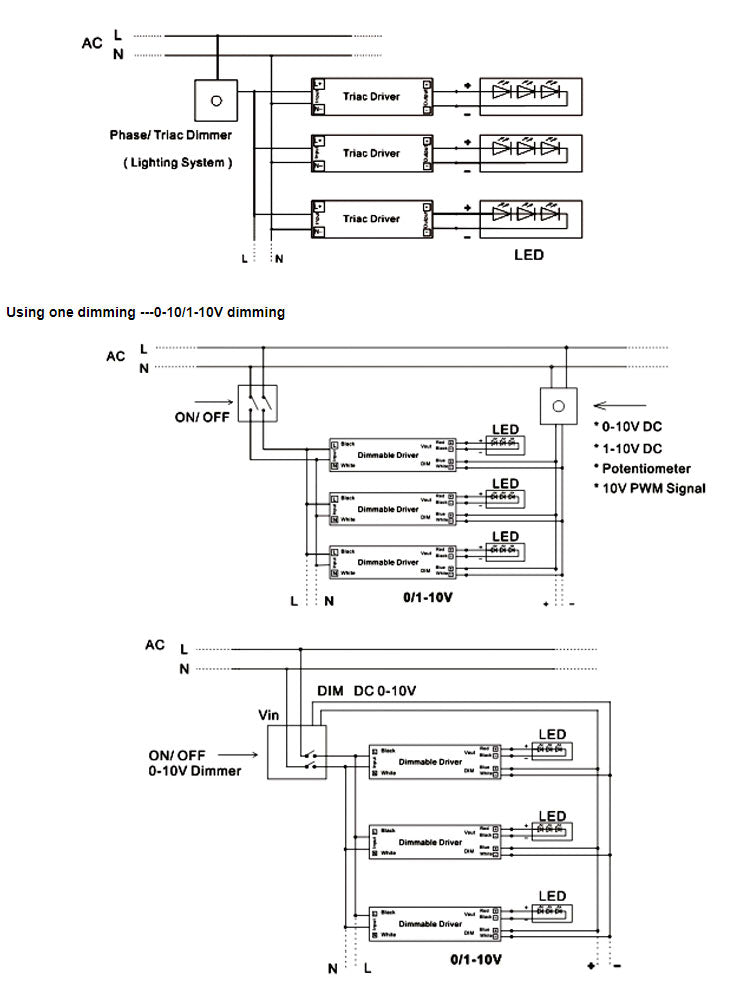

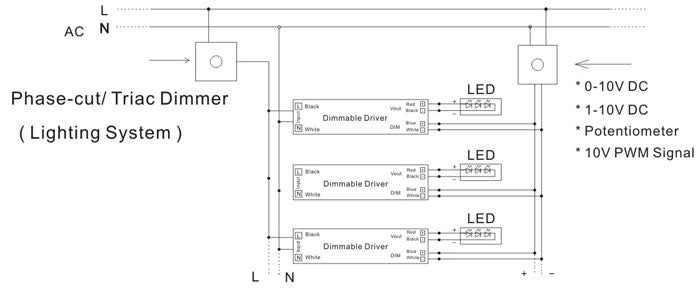

Dimming Operation?and Connecting Diagram
??Using two ways of dimming?at the same time, customers should?be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming;
Using one dimming?---TRIAC/Phase cut dimming?
??The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by?connection a phase /Triac dimmer of lighting system.
??Working with forward phase /leading edge ,MLV and Reverse phase /trailing edge ,ELV,TRIAC dimmers?
??Min loading is about 10%
??Please try to use dimmers with power at least 1.5 times as the output power of the driver.
