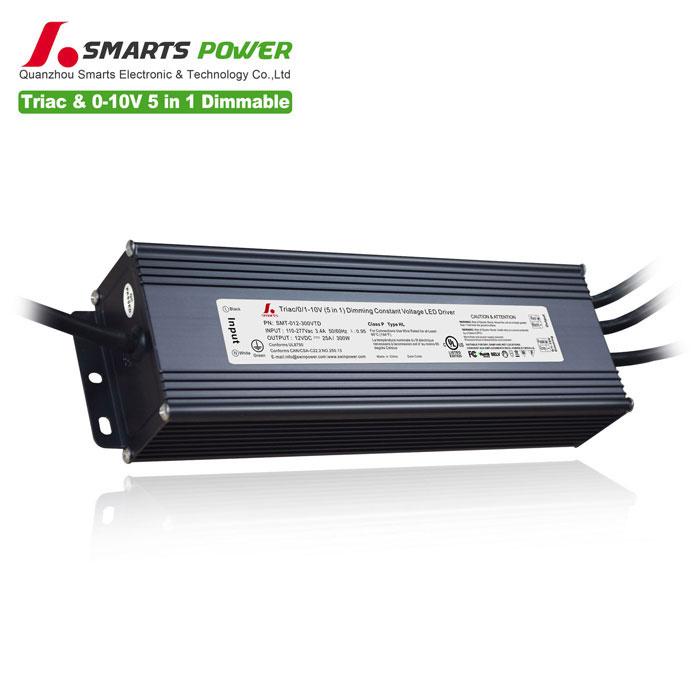

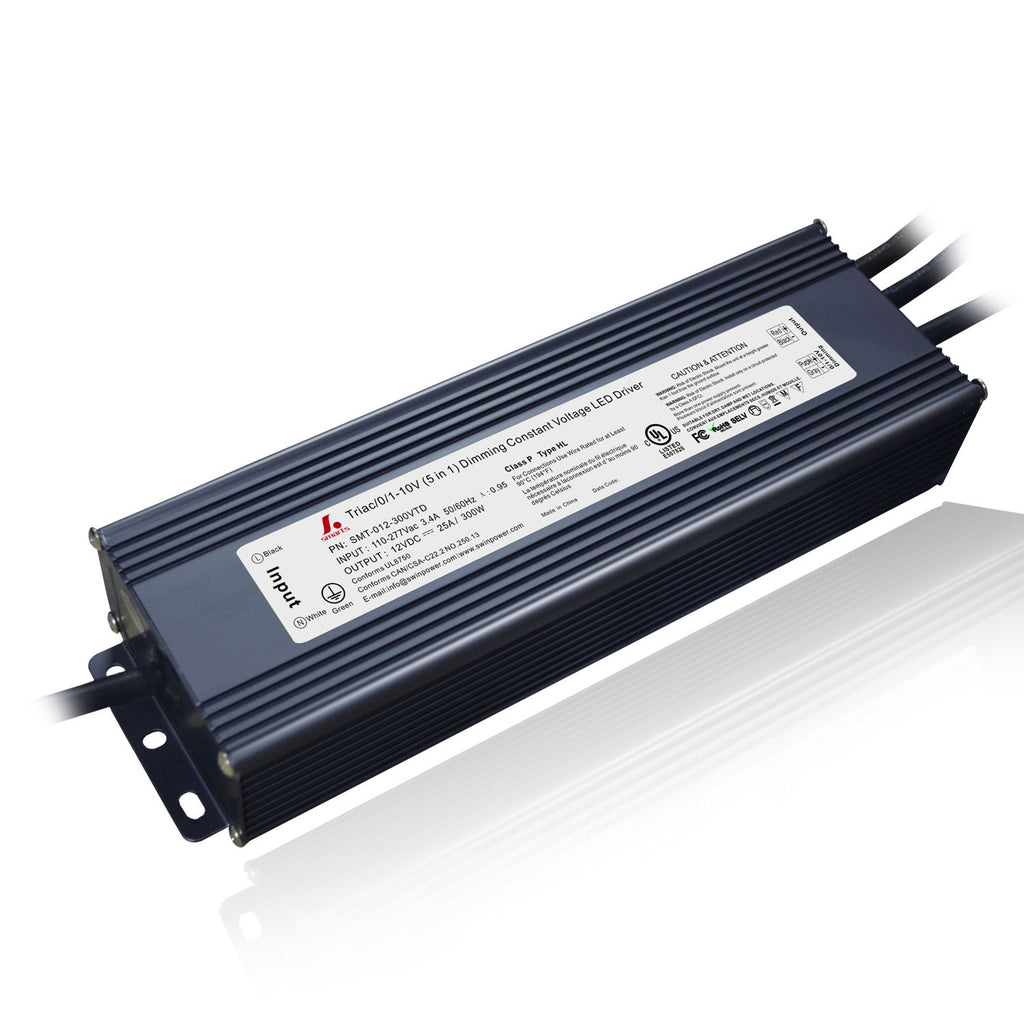

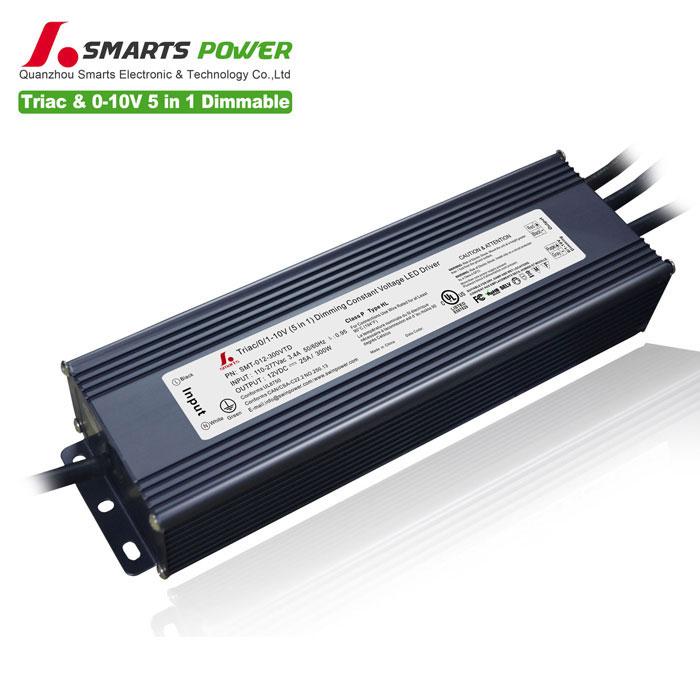

5 in 1 Dimmable LED Driver 300W (Standard Size)
SMARTS this 5 in 1 high power waterproof 12V dimmable 300W led drivers power supply, Passed UL/cUL certification, suitable for the North American market, has a 7-year warranty, and its constant voltage working mode can well protect the life of the lamp.

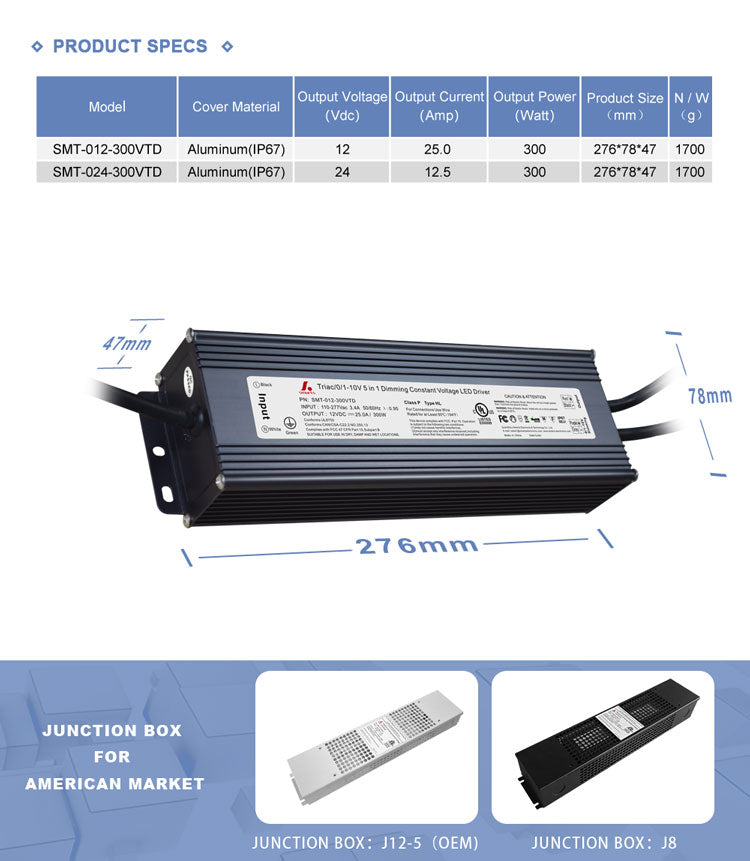

| Model | SMT-012-300VTD | SMT-024-300VTD | |
| Output | DC Voltage | 12V | 24V |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±2% | ±1% | |
| Rated current | 25.0A | 12.5A | |
| Rated power | 300W | ||
| Input | Voltage Range | 100-277VAC | |
| Frequency Range | 47~63HZ | ||
| Power Factor(Typ.)@ full load | 0.98@120VAC 0.97@277VAC | 0.98@120VAC 0.97@277VAC | |
| THD(Typ.)@ full load | <20% | ||
| Inrush Current (Typ.) | 20A, 50%, 1.9ms @120VAC; 35A, 50% 1.9ms @277VAC | ||
| Full Load @Efficiency(Typ.) | 86%@120VAC 88%@277VAC | 88%@120VAC 92%@277VAC | |
| AC Current(Typ.) | 3.4A | ||
| Leakage current | <0.50mA | ||
| Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over load | ≤120% constant current limiting, auto-recovery | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| Over Current | ≤1.4*I out | ||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | |
| Working Humidity | 20 - 95%RH,non-condensing | ||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min.each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | UL8750 , CAN/CSA-C22.2 No.250.13 | |
| Withstand voltage | I/P-O/P:1.88KVac | ||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | FCC 47 CFR Part 15 ,Subpart B | ||
| Others | Weight | 1.7Kg | |

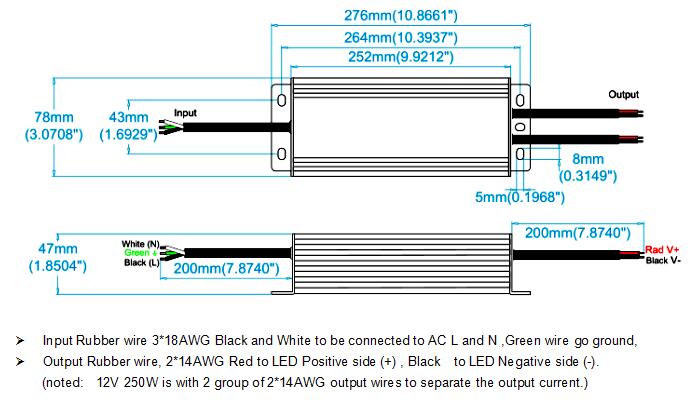

| Size | 276*78*47mm (L*W*H) | ||
| packaging | Carton size: 390*310*185mm , 10PCS/CTN 385*335*200mm 20PCS/CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. | ||
| 2. Tolerance: includes set up tolerance, line regulation and load regulation . | |||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. | |||
| 4. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | |||

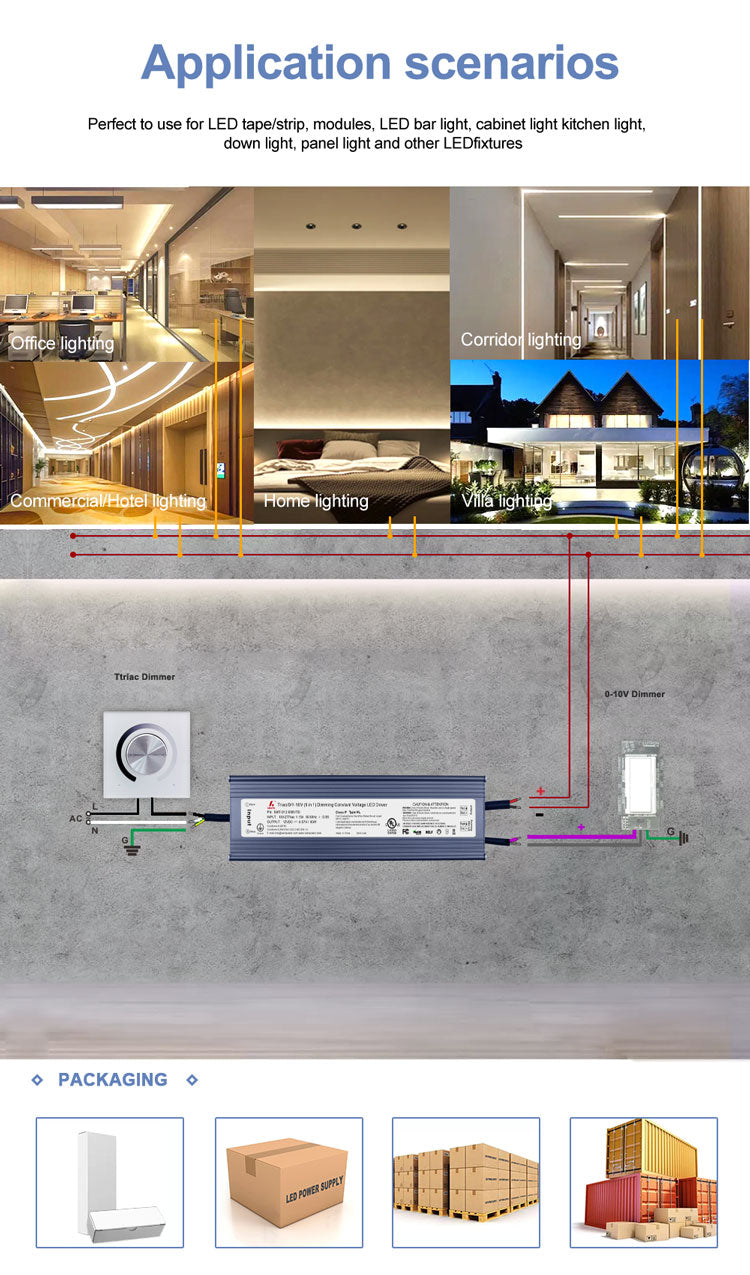

Dimming Operation and Connecting Diagram
¡ùUsing two ways of dimming at the same time, you must be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming;
¡ùUsing one dimming ---TRIAC/Phase cut dimming
1.The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.
2.Working with forward phase /leading edge ,MLV and Reverse phase /trailing edge ,ELV,TRIAC dimmers
3.Min loading is about 10%
4.Please try to use dimmers with power at least 1.5 times as the output power of the driver.
