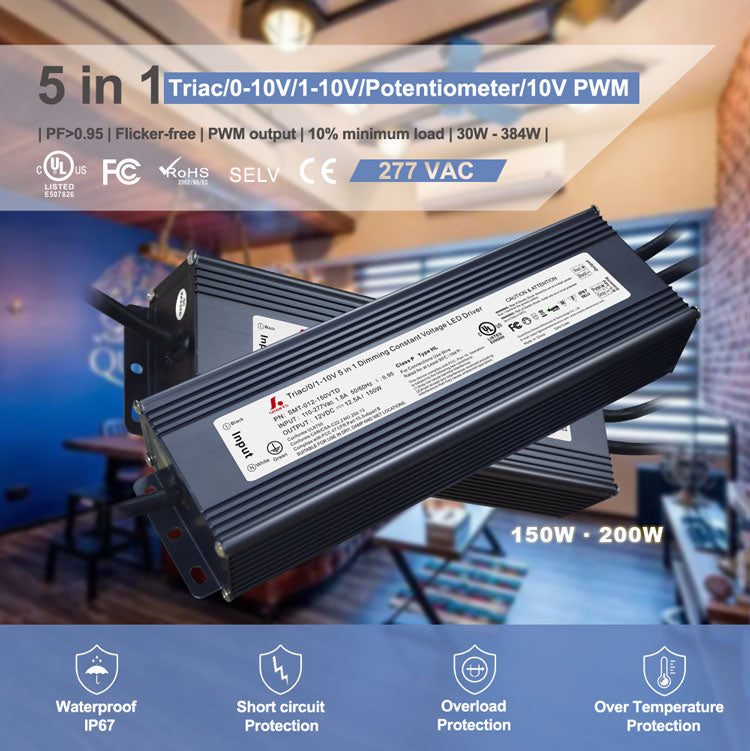

5 in 1 Dimmable LED Driver 150W (Standard Size)

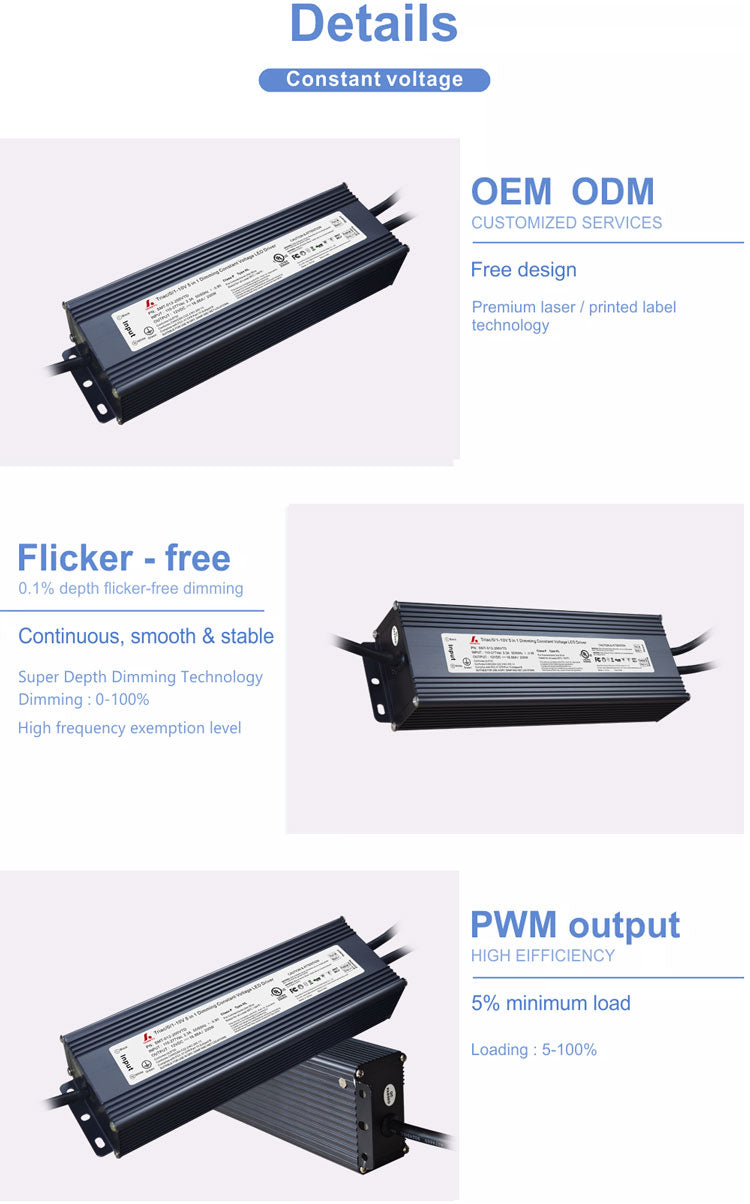

SMT-012-150VTD is triac+0-10v 150W 24v Outdoor dimmable led driver, This driver is not only a Triac dimming driver but can also be adjusted to 0 10v dimming mode. If there is a suitable dimmer, it can also achieve a stable, smooth, and flicker-free dimming function.
| model | SMT-012-150VTD | SMT-024-150VTD | |
| Output | DC Voltage | 12V | 24V |
| Voltage Accuracy | ±0.5V | ||
| Rated current | 12.5A | 6.25A | |
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±2 % | ±1 % | |
| Rated power | 150W | 150W | |
| Input | Voltage Range | 100~277V AC | |
| Frequency Range | 47~63HZ | ||
| THD(Typ.) @full load | <20% | ||
| Power Factor ( Typ.) | 0.98@120VAC 0.95@277VAC | 0.97@120VAC 0.94@277VAC | |
| Full Load Efficiency(Typ.) | 85%@120VAC 86%@277VAC | 85%@120VAC 87%@277VAC | |
| AC Current(Typ.) | 1.8A/110VAC | ||
| Inrush Current (Typ.) | 15A, 50%, 1.4ms @120VAC; 30A, 50% 1.4ms @277VAC | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition removed | |
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| Over Loading | ≤120% constant current limiting, auto-recovery | ||
| Environment | Working TEMP. | -40~+60℃ | |
| Working Humidity | 20~90%RH,non-condensing | ||
| Storage TEM.,Humidity | -40~+80℃,10~95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | UL8750 , CAN/CSA-C22.2 No.250.13 | |
| Withstand voltage | I/P-O/P:1.88KVac | ||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | FCC 47 CFR Part 15 ,Subpart B | ||
| Others | Net Weight | 1.5Kg | |

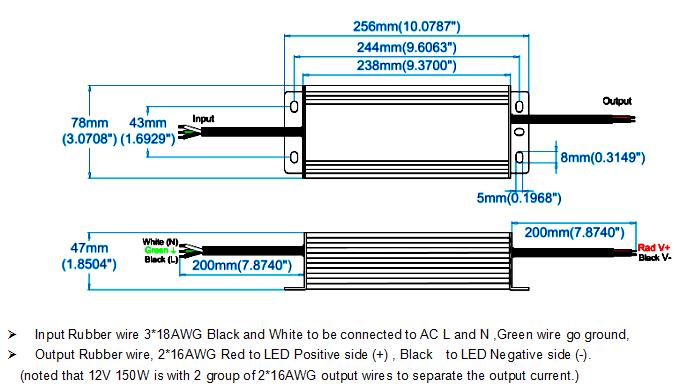

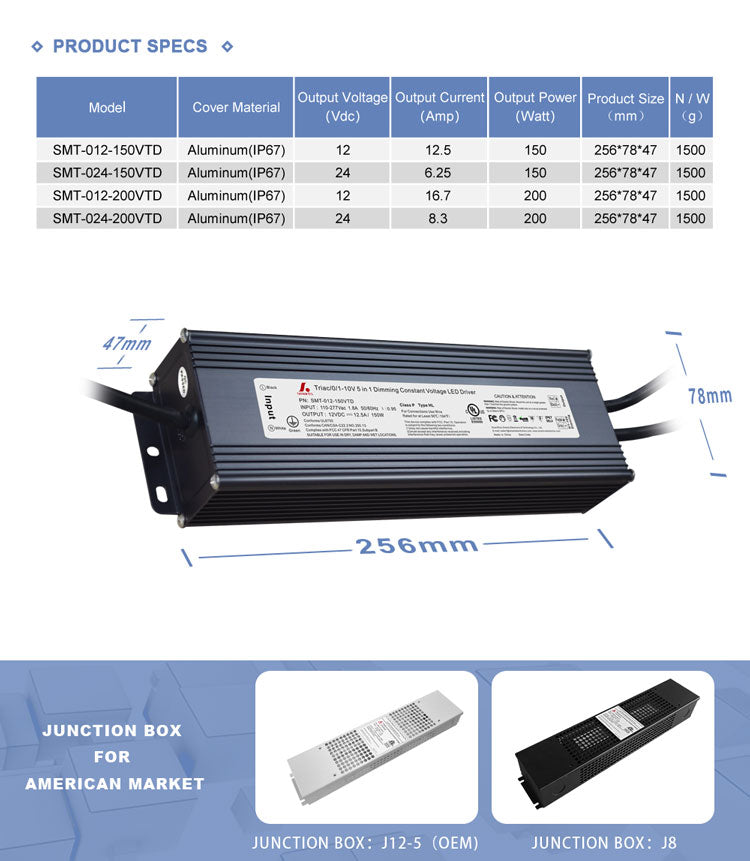

| Size | 256*78*47mm(L*W*H) | ||
| packing | 340*280*185mm 10pcs /CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. | ||
| 2. Tolerance: includes set up tolerance, line regulation and load regulation . | |||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | |||

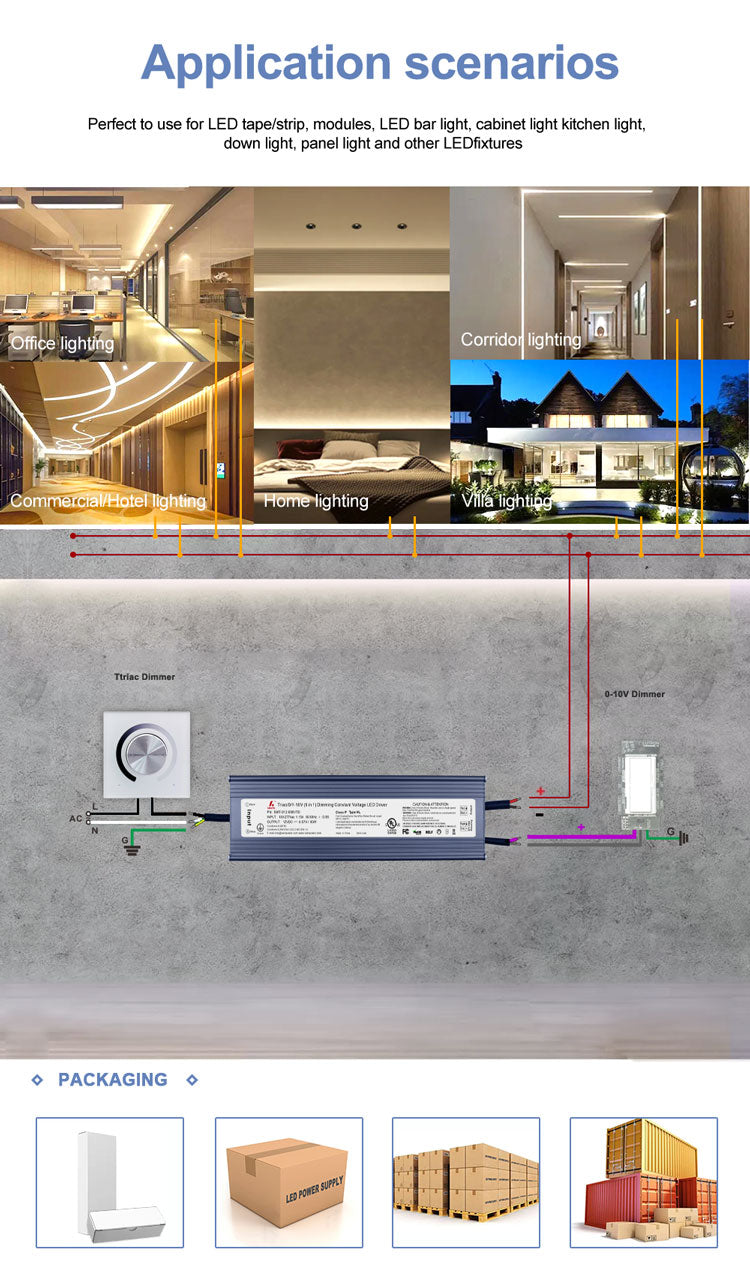

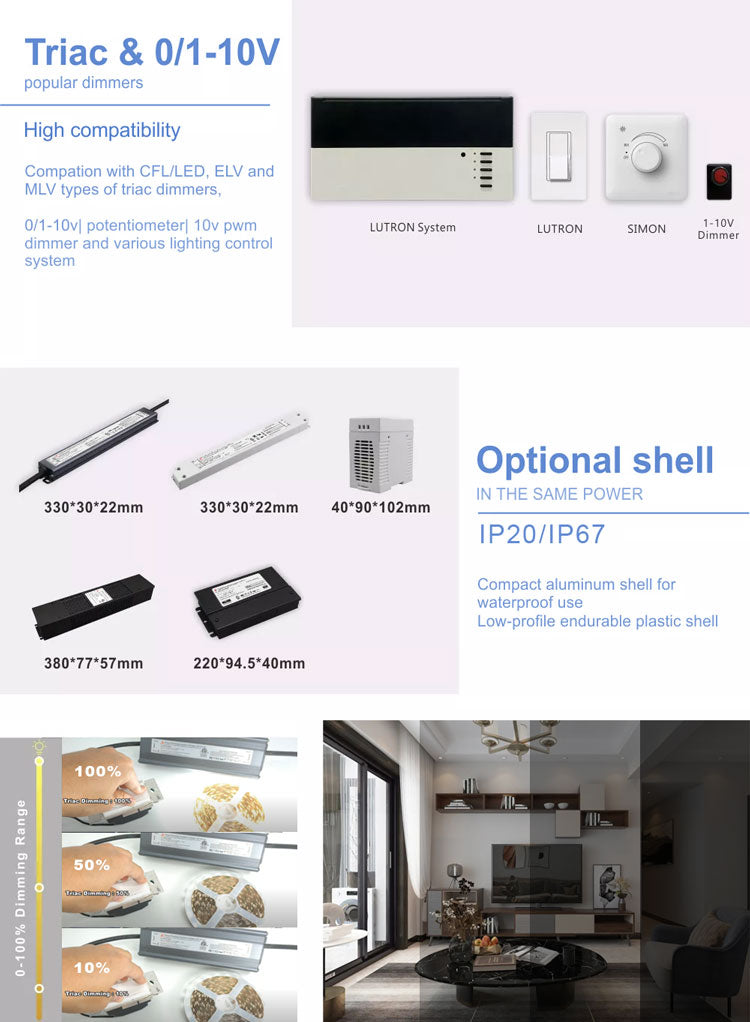

Dimming Operation and Connecting Diagram
¡ùUsing two ways of dimming at the same time, you must be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming;
¡ùUsing one dimming ---TRIAC/Phase cut dimming
1.The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.
2.Working with forward phase /leading edge ,MLV and Reverse phase /trailing edge ,ELV,TRIAC dimmers
3.Min loading is about 10%
4.Please try to use dimmers with power at least 1.5 times as the output power of the driver.
