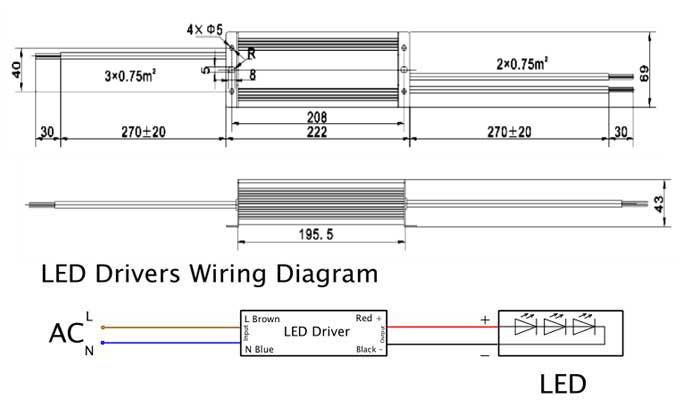

Waterproof LED Driver 96W
SMT-012-096VW
Non-dimmable LED Driver
SMARTS
led driver 12v 100w with widely input voltage range 100-265Vac.ETL certified, in line with international safety standards.OEM are welcome.
MODEL
SMT-012-096VW
SMT-024-096VW
OUTPUT
DC VOLTAGE...
led driver 12v 100w with widely input voltage range 100-265Vac.ETL certified, in line with international safety standards.OEM are welcome.
| MODEL | SMT-012-096VW | SMT-024-096VW | |
| OUTPUT | DC VOLTAGE | 12V | 24V |
| RATED CURRENT | 8.33A | 4A | |
| CURRENT RANGE | 0~8A | 0~4A | |
| RATED POWER | 96W | 96W | |
| RIPPLE&NOISE(max) | 150mV | 150mV | |
| VOLTAGE TOLERANCE | ±0.5V | ±0.5V | |
| SETUP RISE TIME | 80ms/110V,220VAC | ||
| HOLD UP TIME(Typ.) | 60ms/110V,220VAC | ||
| INPUT | VOLTAGE RANGE | 100~265VAC | |
| FREQUENCY RANGE | 50~60Hz | ||
| POWER FACTOR(Typ.) | 0.95 | ||
| EFFICIENCY(Typ.) | ﹥87% | ||
| AC CURRENT(Typ.) | 0.92A/110VAC, 0.86A/220VAC | ||
| INRUSH CURRENT (Typ.) | COLD START 50A/110VAC, 220VAC | ||
| PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | |
| Overload | overload protected@145-160% above peak rating | ||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | ||
| ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) | |
| WORKING HUMIDITY | 20~99% RH non-condensing(Waterproof IP67) | ||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | ||
| SAFETY&EMC | SAFETY STANDARDS | CE ETL Mark(LVD) | |
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC IP-GND:1.5KVAC | ||
| EMC Test Standards | EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 | ||
| EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006 | |||
| NOTE | 1.All parameters NOT specially mentoned are measured at 110VAC,220VAC input,rated load and 25℃ of ambient temperature. | ||
| 2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor. | |||
| 3.Tolerance:includes set up tolerance,line regulation and load regulation. | |||
