DALI 2& PUSH Dim C.V. LED Driver 100W (DT8)
SMT-12100V-DP2-2C
Smarts Power
100W DT8 Constant Voltage Dali-2 & Push Dimmable LED Driver IP67 efficiency is as high as 89%, with short circuit, overload, over-temperature protection, built-in NFC function
Model
SMT-121...
100W DT8 Constant Voltage Dali-2 & Push Dimmable LED Driver IP67 efficiency is as high as 89%, with short circuit, overload, over-temperature protection, built-in NFC function
| Model | SMT-12100V-DP2-2C | SMT-24100V-DP2-2C | SMT-36100V-DP2-2C | SMT-48100V-DP2-2C | |
| Output | DC Voltage | 12V(12-13.5V adjust by NFC) | 24V (24-26V adjust by NFC) | 36V (36-38V adjust by NFC) | 48V (48-50V adjust by NFC) |
| Voltage Tolerance | ±0.2V | ||||
| Rated current | 8.34A | 4.17A | 2.78A | 2.08A | |
| Rated power | 100W | ||||
| Load Regulation | 2% | 1% | 1% | 1% | |
| Input | Voltage Range | 100-277VAC | |||
| Frequency Range | 47 - 63Hz | ||||
| Power Factor(Typ.)@ full load | PF≥0.98@120VAC PF≥0.96@230VAC PF≥0.95@277VAC (Full loading) | ||||
| THD(Typ.)@ full load | ≤10%@120VAC ; ≤10%@230VAC; ≤15%@277VAC | ||||
| Efficiency(Typ.)@ full load | 86%@120VAC 89%@230VAC/277VAC | ||||
| AC Current(Max.) | 1.3A | 1.3A | 1.3A | 1.3A | |
| Standby power consumption | 0.20W(@120V) 0.39W(@230V) 0.47W(@277V) |
0.25W(@120V) 0.42W(@230V) 0.47W(@277V) |
0.20W(@120V) 0.43W(@230V) 0.48W(@277V) |
0.20W(@120V) 0.43W(@230V) 0.48W(@277V) |
|
| Inrush Current (Typ.) | 23.2A, 50%, 360us @120VAC; 80A, 50% , 104us @230VAC54A, 50% , 280us @277VAC | ||||
| Protection | Short Circuit | Hiccup mode, recover automatically after fault condition is removed | |||
| Over Load | ≤120% ,hiccup mode, recover automatically after fault condition is removed | ||||
| Over temperature | Ambient temp. over 55℃±10℃, output will be off; recovers automatically after temp. drops. | ||||
| Environment | Working TEMP. | -40 ~ +70℃ (see below derating curve) | |||
| Working Humidity | 20 ~ 95%RH,non-condensing | ||||
| Storage TEM.,Humidity | -40 ~ +80℃,10 ~ 95%RH | ||||
| TEMP.coefficient | ±0.03%/℃(0 ~ 50℃) | ||||
| Vibration | 10 ~ 500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||||
| Safety&EMC | Safety standards | EN61347-1 EN61347-2-13(EU) & UL8750(US) | |||
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU)I/P-O/P:1.80KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (US) | ||||
| Isolation resistance | I/P-O/P:100MΩ/ 500VDC/ 25℃/ 70%RH | ||||
| EMC Emission | EN55015 EN61000-3-2 EN61000-3-3 (EU)≥50% Load & FCC Part 15 B (US) | ||||
| EMC Immunity | EN61000-4-2,3,4,5,6,11 EN61547 | ||||
| Others | Weight | 0.83KG | |||

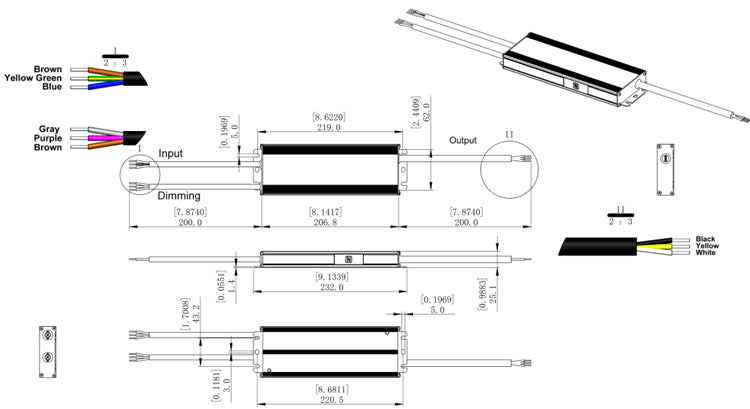

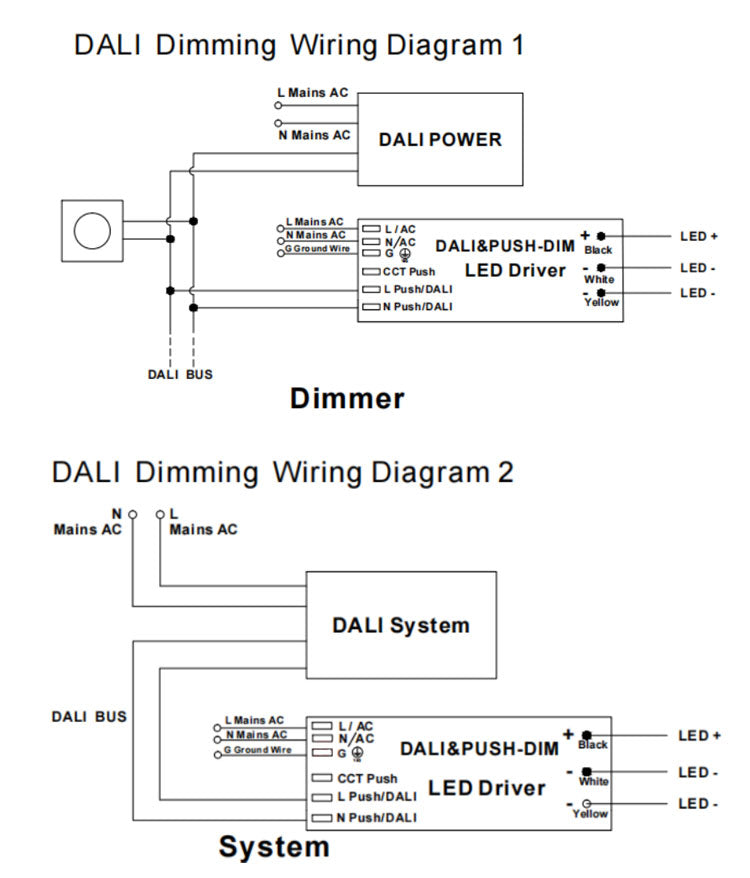

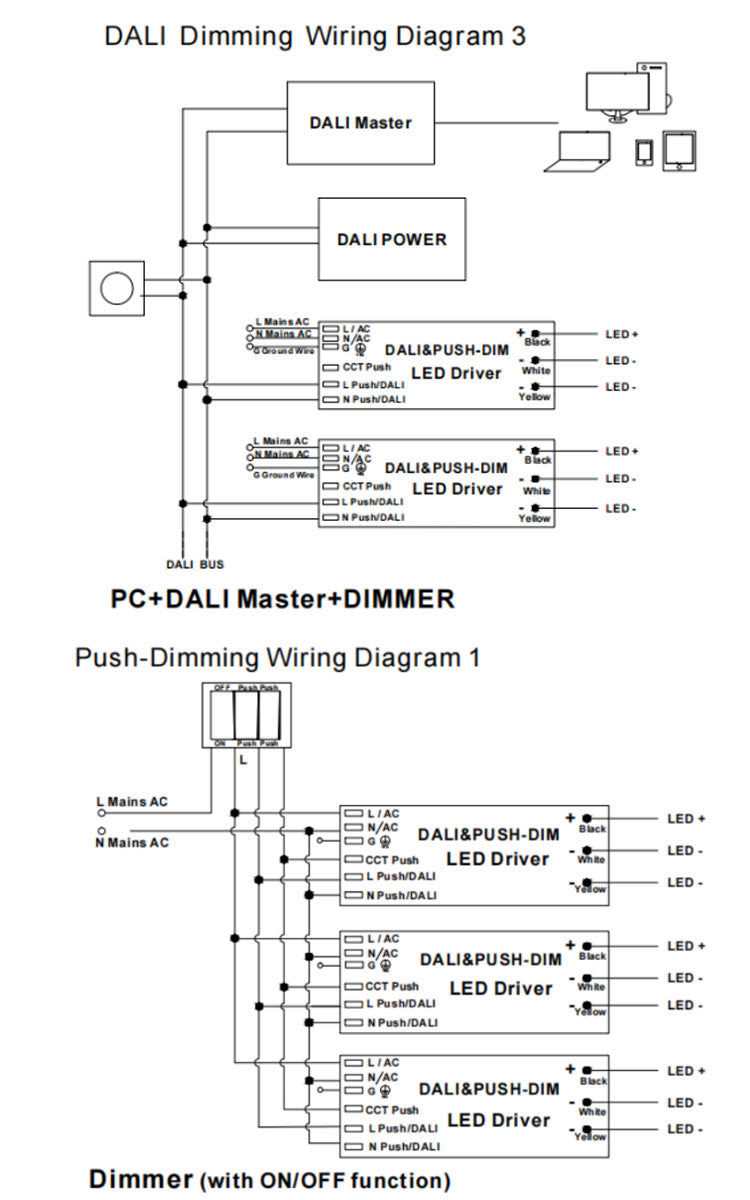

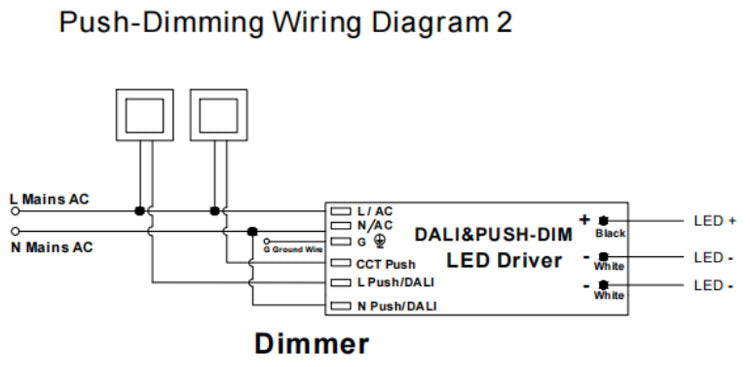

| Dimension | 231*78*25.1mm (L*W*H) | ||||
| packing | 355*300*170mm/20PCS/CTN G.W.:18KG/CTN | ||||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC/230VAC input , rated load and 25℃of ambient temperature. | ||||
| 2. Tolerance: includes set up tolerance, line regulation and load regulation . | |||||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | |||||
