CCT Dim & 5 in 1 Dim J-BOX LED Driver 300W
SMT-CV12300-VTDHV3
5 in 1 Dimmable LED Driver
SMARTS
Model Number
SMT-CV12300-VTDHV3
SMT-CV24300-VTDHV3
OUTPUT
Rated Power
300W
300W
Rated Voltage
12V
24V
Rated Current
25A CW:12.5A*2CH
12.5A CW:6.25A*2CH
Voltage Tolerance
±0.5V
V...
| Model Number | SMT-CV12300-VTDHV3 | SMT-CV24300-VTDHV3 |
| OUTPUT | ||
| Rated Power | 300W | 300W |
| Rated Voltage | 12V | 24V |
| Rated Current | 25A CW:12.5A*2CH | 12.5A CW:6.25A*2CH |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| INPUT | ||
| Voltage Range | 100-277V | |
| Frequency Range | 47-63Hz | |
| Power Factor(typ.) | 0.98@120VAC 0.95@277VAC Full load | |
| Total Harmonic Distortion | THD< 20%@120VC/277VAC; | |
| Efficiency(Typ.) | 86%@120VAC 88%@277VAC | 88%@120VAC 92%@277VAC |
| AC Current(Typ.) | 3.4A | |
| Inrush Current(Typ.) | 20A, 50%, 1.9ms @120VAC; 35A, 50% 1.9ms @277VAC | |
| Leakage Current | <0.5mA/ 120VAC | |
| PROTECTION | ||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition removed | |
| Over Load | ≤120% shut down o/p voltage, re-power on to recover after fault condition removed | |
| Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | |
| ENVIRONMENT | ||
| Working Temp. | Tcase=-40 ~ +60 ℃ | |
| Max. Case Temp. | Tcase=+90℃ | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC | ||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
| Withstand voltage | I/P-O/P:1.88KVAC | |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
| EMC Emission | Compliance to FCC part 15 Subpart B | |
| OTHERS | ||

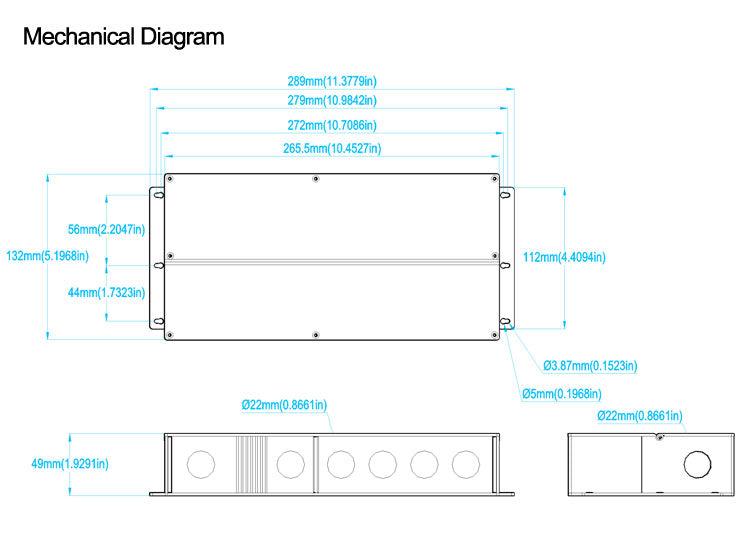

| Dimension | 289x132x49mm (L*W*H) N.W: 2.15kg | |
| Packing | 10pcs/CTN G.W:23KG SIZE:340*295*295 mm | |
