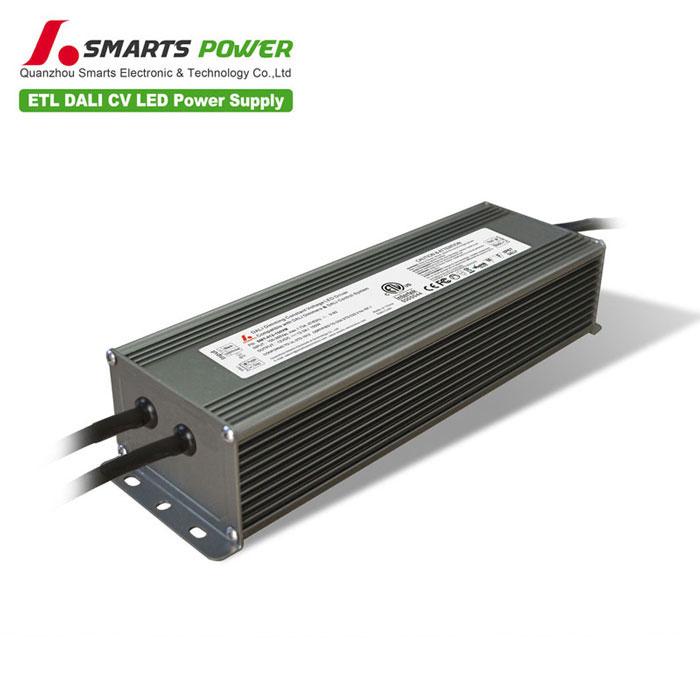

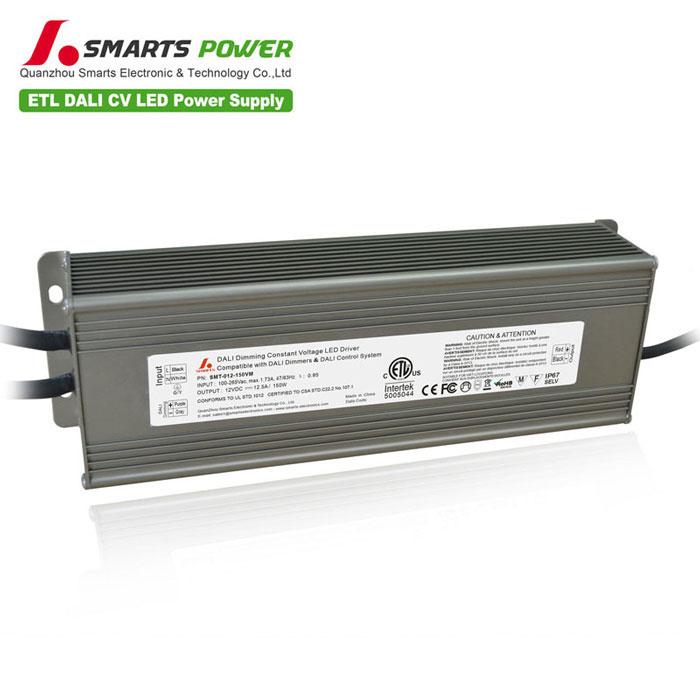

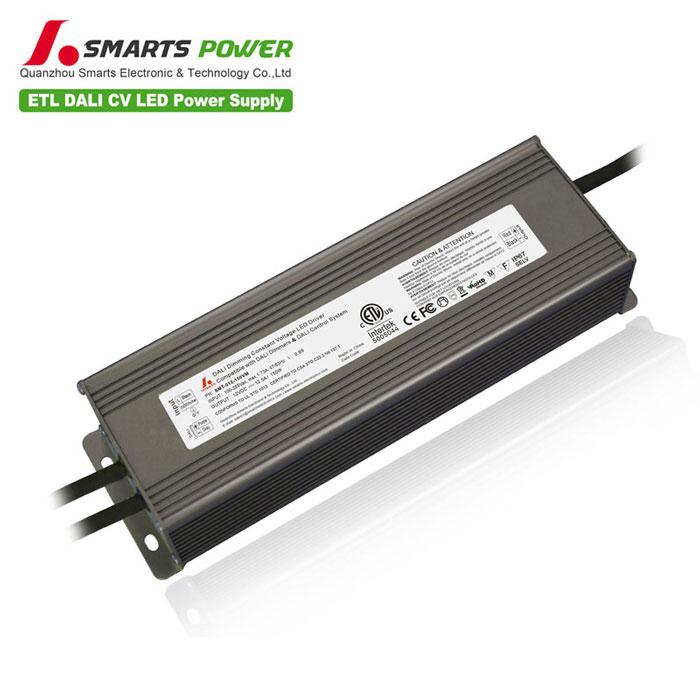

DALI Dimmable Driver 150W (Standard Size)
SMT-012-150VM
DALI Dimmable LED Driver
SMARTS
The Dali driver 150w has the protection of short circuit/over current/over temperature. It comes to flawless dimming and PWM output. this driver is much better in design solution and componet grad...
The Dali driver 150w has the protection of short circuit/over current/over temperature. It comes to flawless dimming and PWM output. this driver is much better in design solution and componet grades.
| Model | SMT-012-150VM | SMT-024-150VM | |
| Output | DC Voltage | 12V | 24V |
| Voltage Tolerance | ±0.5V | ||
| Rated current | 0 - 12.5A | 0 - 6.25A | |
| Rated power | 150W | 150W | |
| Input | Voltage Range | 100-265VAC/10-130VAC/170-265VAC | |
| Frequency Range | 47 - 63HZ | ||
| Power Factor | PF≧0.98/120VAC PF≧0.98/230VAC PF≧0.95/265VAC(Full loading) | ||
| Full Load Efficiency(Typ.) | >89% | >90% | |
| AC Current(Max.) | 1.49A | 1.47A | |
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | Protection type: Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Load | ≤120% | ||
| Over Circuit | ≤1.2*Iout | ||
| Protection Class: | Ⅰ | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, re-power on to recover | ||
| Environment | Working TEMP. | -40 - +60℃ | |
| Working Humidity | 20 - 95%RH,non-condensing | ||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Vibration | 10 - 500Hz, 5G 12min./1 cycle, period for 72min.each along X,Y,Z axes. | ||
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13 IP66 | |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC | ||
| Isolation resistance | I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH | ||
| EMC Emission | EN55015,EN61000-3-2 (≥60%load) | ||
| EMC Immunity | EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level (surge4KV) | ||
| Others | Weight | 1.6Kg | |
| Size | 256*78*47mm(L*W*H) | ||
| packing | 305*295*210mm/10pcs/CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 110VAC, 230VAC input , rated load and 25℃of ambient temperature. | ||
| 2. Tolerance: includes set us tolerance, line regulation and load regulation . | |||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | |||
?
¡ùInput Rubber cable H05RN-F 3G 1.0mm2,the green/yellow cable connect with (FG) ,Brown with AC (L),Blue with AC(N)
¡ùSignal Rubber cable H05RN-F?2*0.75mm2,Blue and White is DA1,?DA2?(No?polar). Connected to the BUS of the DALI Master.
¡ùOutput rubber cable :1 group of H05RN-F 2*1.5mm2?for SMT-024-150VM; 2 group of 2*1.5mm2?for SMT-012-150VM,?Red is output?( V+) Positive,Black is output?(V-) negative. Connected to LED Lamps.
Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
