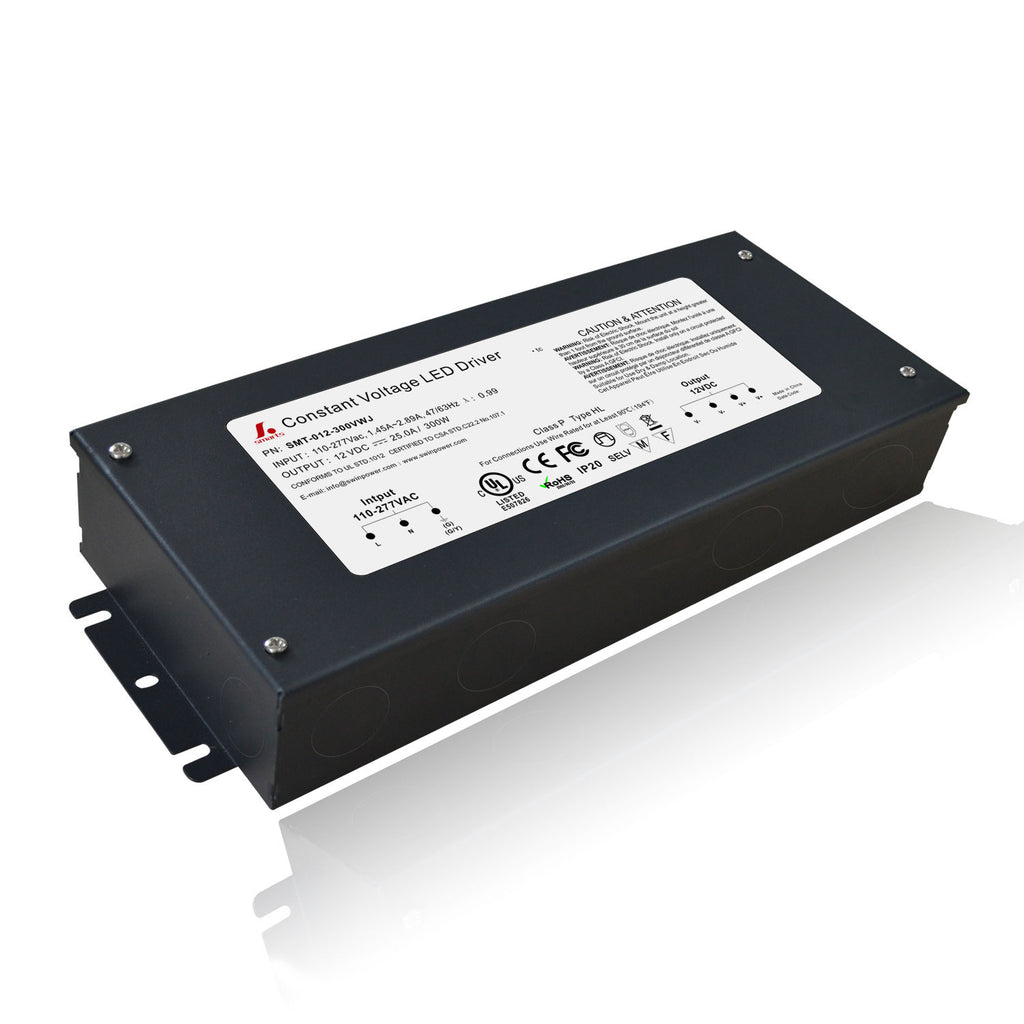

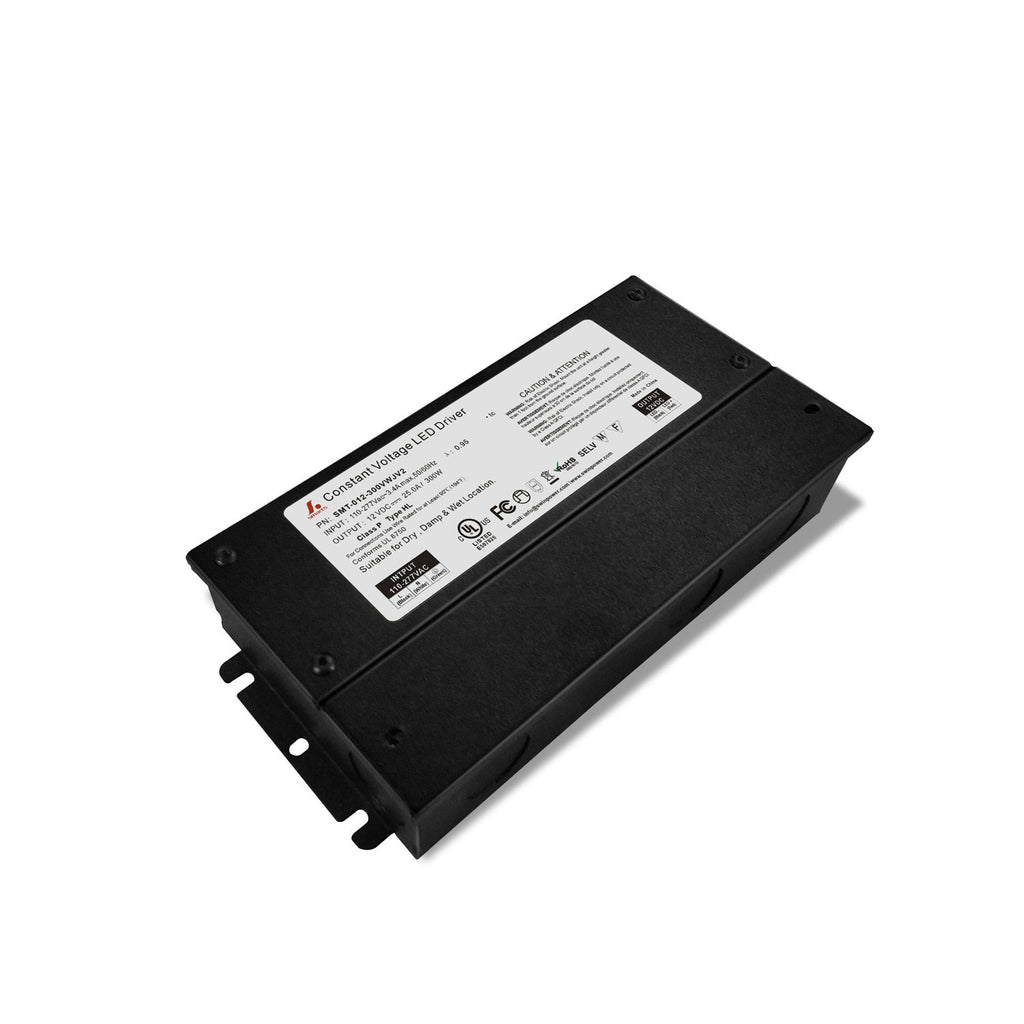

Non-Dimmable J-Box Driver 300W
SMT-012-300VWJ
Non-dimmable LED Driver
SMARTS
High quality constant voltage led power supply 300w,Comply with North American safety standards, to pass UL ROHS, Class P and other standards.
Model
SMT-012-300VWJ (1.0 ver.)SMT-012-300VWJV2(2.0...
High quality constant voltage led power supply 300w,Comply with North American safety standards, to pass UL ROHS, Class P and other standards.
| Model | SMT-012-300VWJ (1.0 ver.) SMT-012-300VWJV2 (2.0 ver.) SMT-012-300VWJWV2 (3.0 ver.) |
SMT-024-300VWJ (1.0 ver.) SMT-024-300VWJV2 (2.0 ver.) SMT-024-300VWJWV2 (3.0 ver.) |
SMT-048-300VWJ (1.0 ver.) SMT-048-300VWJV2 (2.0 ver.) SMT-048-300VWJWV2 (3.0 ver.) |
||
| Output | DC Voltage | 12V | 24V | 48V | |
| Voltage Tolerance | ±0.5V | ||||
| Voltage Regulation | ±0.5% | ||||
| Voltage Tolerance | ±0.5V | ||||
| Load Regulation | ±2% | ±1% | ±1% | ||
| Rated current | 25.0A | 12.5A | 6.25A | ||
| Rated power | 300W | ||||
| Input | Voltage Range | 110-277VAC | |||
| Frequency Range | 47-63Hz | ||||
| PF (Typ.)@full load | 0.99@120V ;0.98@230V ;0.98@277V | 0.99@120V ; 0.98@230V ;0.98@277V | 0.99@120V ; 0.98@230V ; 0.98@277V |
||
| THD(Typ.)@ full load | <10% @120V <20%@230V <20% @277V | ||||
| Efficiency (Typ.)@ full load | 85%@120V, 89%@230V ,89%@277V | 88%@120V,92%@230V,92%@277V | 89%@120V,93%@230V,93%@277V | ||
| AC Current (Max.) | 3.4A (100VAC) | ||||
| Inrush Current (Typ.) | 20A,50% ,1.9ms@120V ;60A,50% 130us@230V ; 35A,50% 1.9ms@277V | ||||
| Leakage current | <0.50mA | ||||
| Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition removed | |||
| Over Loading | ≤120% Hiccup mode,recovers automatically after fault condition is removed | ||||
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||||
| Environment | Working TEMP. | -40~+60℃ | |||
| Working Humidity | 20~90%RH,non-condensing | ||||
| Storage TEM.,Humidity | -40~+80℃,10~95%RH | ||||
| TEMP.coefficient | ±0.03%/℃(0~50℃) | ||||
| Vibration | 10~500Hz 2G 10min./1 cycle,period for 60min.each along X,Y,Z axes | ||||
| Safety standards | UL8750 | ||||
| Safety&EMC | Withstand voltage | I/P-O/P:1.88KVAC | |||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||||
| EMC EMISSION | FCC Part 15 B | ||||
| Others | Weight | 1.8Kg | |||
| Size | 1.0 version:278*108*46mm / 2.0 version:278*110*44mm/3.0 version:278*130*44mm | ||||
| packaging | 10PCS/CTN 385*335*200mm 20PCS/CTN | ||||
| Notes | 1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. | ||||
| 2. To extend the driver's using life ,please reduce the loading at lower input voltage. | |||||
