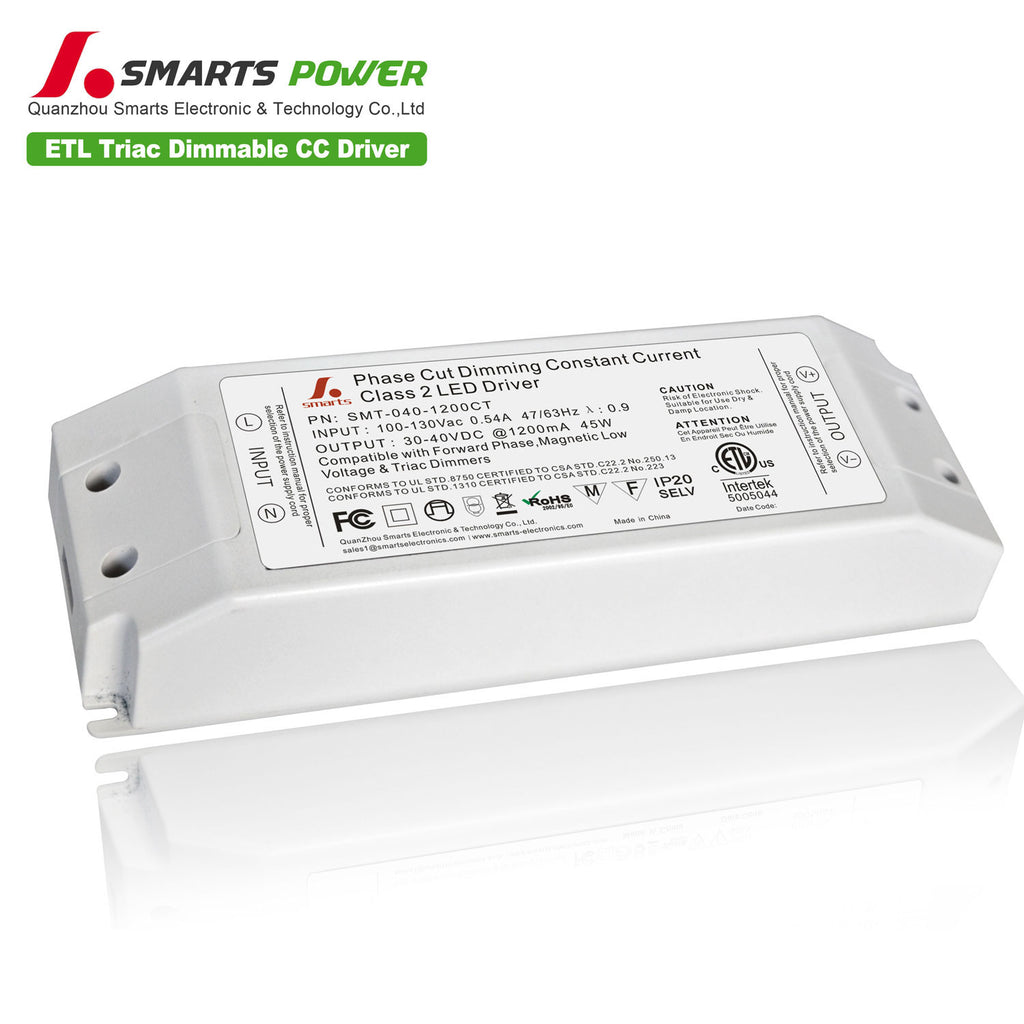

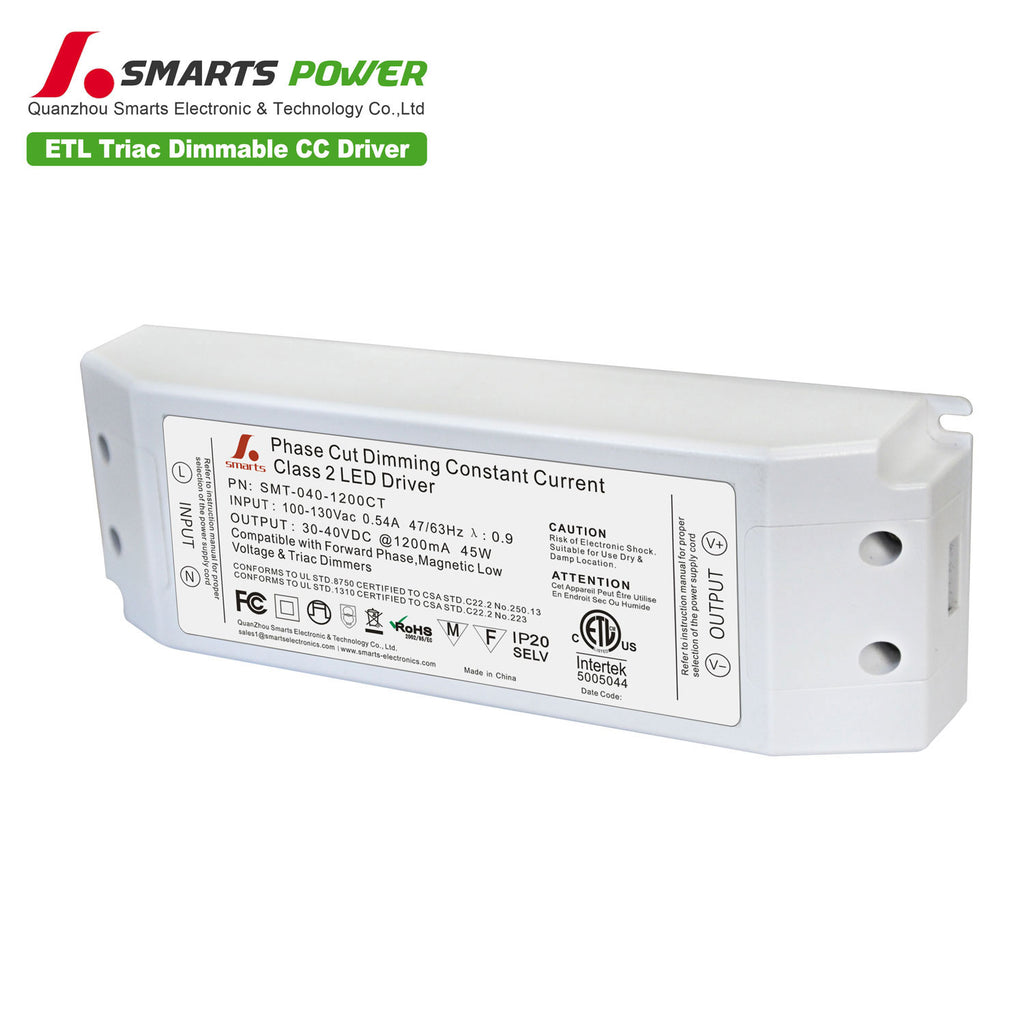

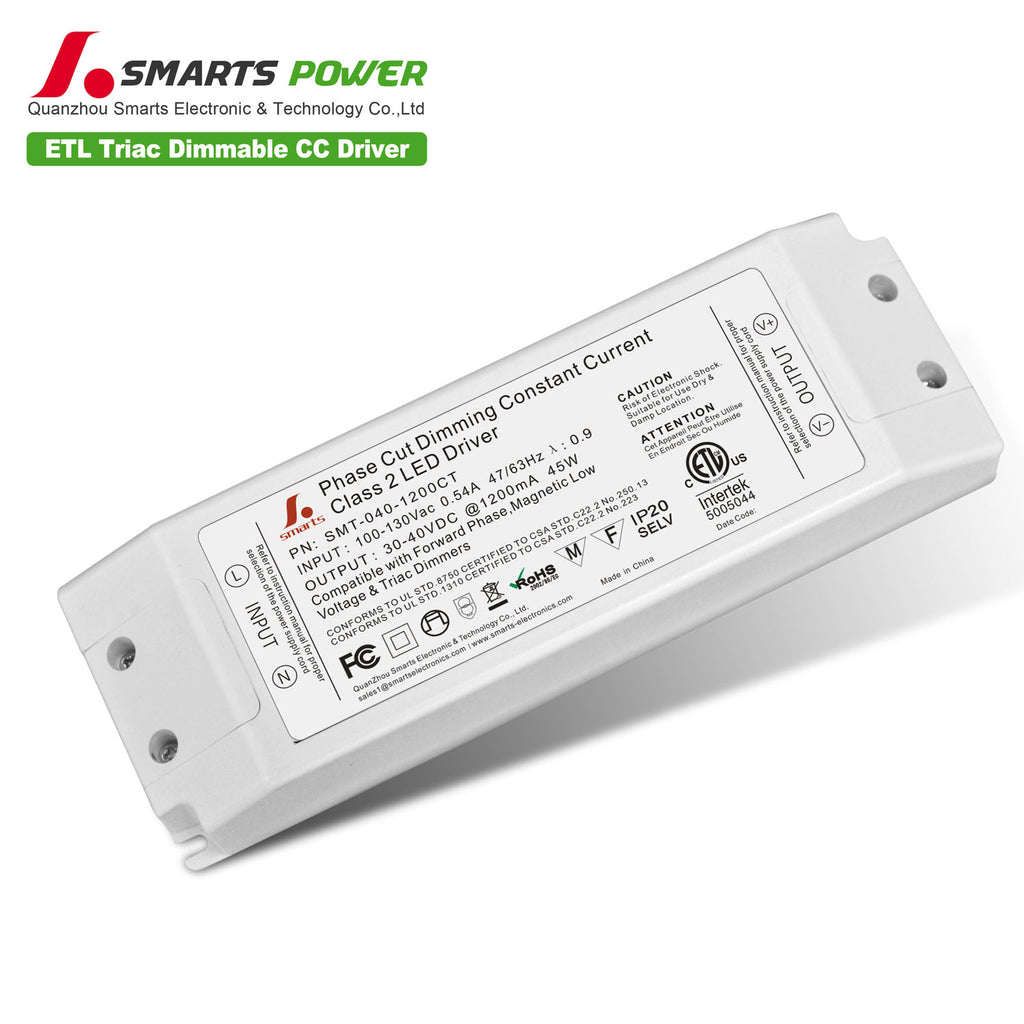

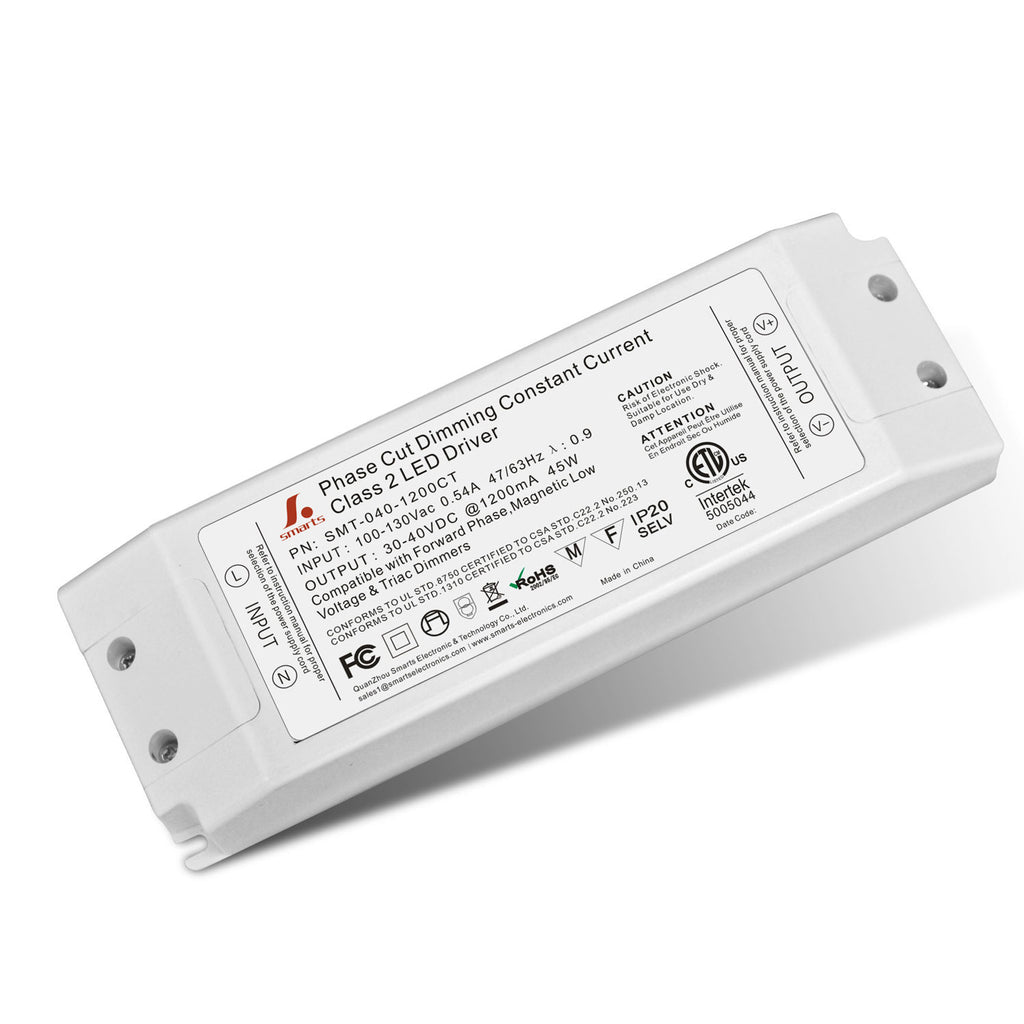

Triac Dimmmable CC LED Driver 45W (1200mA)
SMT-040-1200CT
Triac Dimmable LED Driver
SMARTS
model
SMT-120-0350CT
SMT-065-0700CT
SMT-050-0900CT
SMT-040-1200CT
SMT-032-1400CT
Output
Rated current
350mA
700mA
900mA
1200mA
1400mA
Voltage Accuracy
±3%
DC Voltage
90-120V
40-65V
25-50V...
| model | SMT-120-0350CT | SMT-065-0700CT | SMT-050-0900CT | SMT-040-1200CT | SMT-032-1400CT | |
| Output | Rated current | 350mA | 700mA | 900mA | 1200mA | 1400mA |
| Voltage Accuracy | ±3% | |||||
| DC Voltage | 90-120V | 40-65V | 25-50V | 30-40V | 15-32V | |
| Rated power | 42W | 45W | 45W | 45W | 45W | |
| Input | Voltage Range | 90-135/170~265 VAC | ||||
| Frequency Range | 47~63HZ | |||||
| Power Factor ( Typ.) | PF≧0.92@110V / PF≧0.95@220V (Full load) | |||||
| Full Load Efficiency(Typ.) | >85% | >86% | >86% | >85% | >85% | |
| AC Current(Typ.) | 0.34A/180VAC 0.27A/220VAC 0.24A/250VAC | |||||
| Leakage current | ﹤0.6mA/110VAC / ﹤0.7mA/220VAC | |||||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault conditionis removed. | ||||
| Overload | ≤120% | |||||
| Over voltage | ≦140VAC or ≦270VAC | |||||
| Environment | Working TEMP. | -40~+60℃ | ||||
| Working Humidity | 20~90%RH,non-condensing | |||||
| Storage TEM.,Humidity | -40~+80℃,10~95%RH | |||||
| TEMP.coefficient | ±0.03%/℃(0~50℃) | |||||
| Vibration | 10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes | |||||
| Safety&EMC | Safety standards | UL8750+UL1310 Class 2 unit | ||||
| Withstand voltage | I/P-O/P:1500VAC | |||||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | |||||
| EMC EMISSION | FCC Part 15 B | |||||
| EMC IMMUNITY | EN61000-4-2,3,4,5,6,11(Surge 4KV) | |||||
| Others | Weight | 0.55Kg | ||||
| Size | 180*60*35mm(L*W*H) | |||||
| packing | 350*195*180mm 20PCS/CTN | |||||
| Notes | 1. All parameters NOT specially mentioned are measured at 110V/ 230VAC input , rated load and 25℃ of ambient temperature. | |||||
| 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. | ||||||
| 3. Tolerance:includes set us tolerance,line regulation and load regulation . | ||||||
| 4. Loading should be 60-100%. | ||||||
※Input Brown with AC (L),Blue with AC(N)
※Output Red is（DIM+）,Black is（DIM-）
■ Dimming Operation
※Output power can be adjusted through input terminal of the AC phase line(L) by connection a phase/triac dimmer.
※Forward phase and Reverse phase, ELV, Triac Dimmers
■ Warning
※Prevent to reverse polarity;
※Risk of Electric Shock. When used outdoors, install only on a circuit protected by a Class A GFCI;
※Risk of Fire. Installation involves special wiring methods to run wiring through a building structure. Consult a qualified electrician;
※Risk of Electric Shock. Mount the unit at a height greater than 1 foot from the ground surface.
