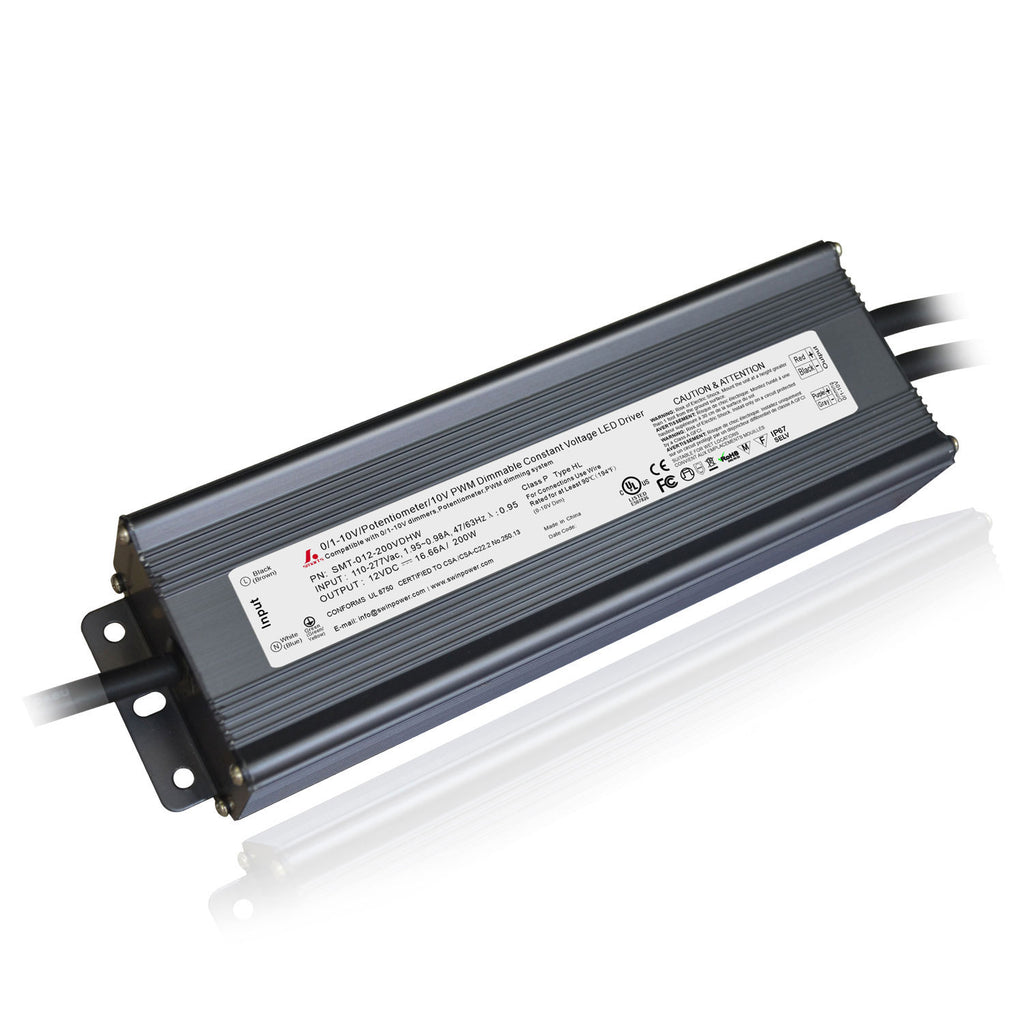

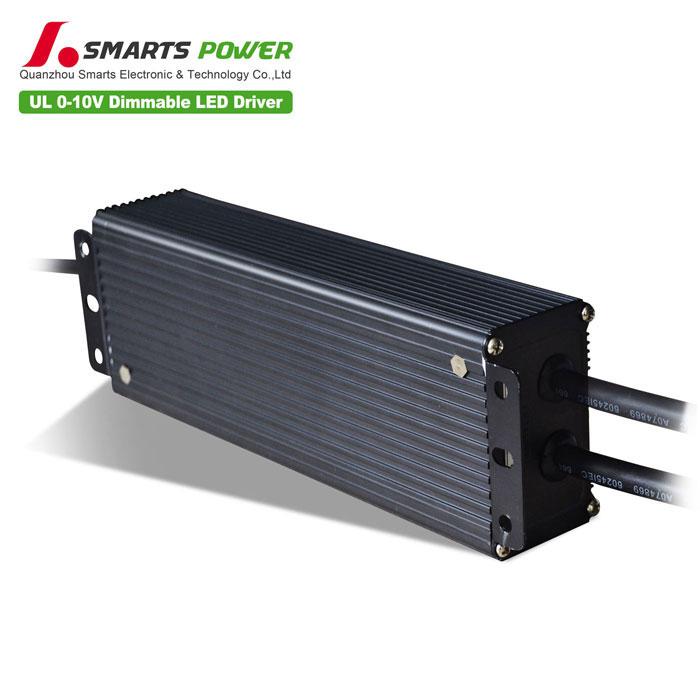

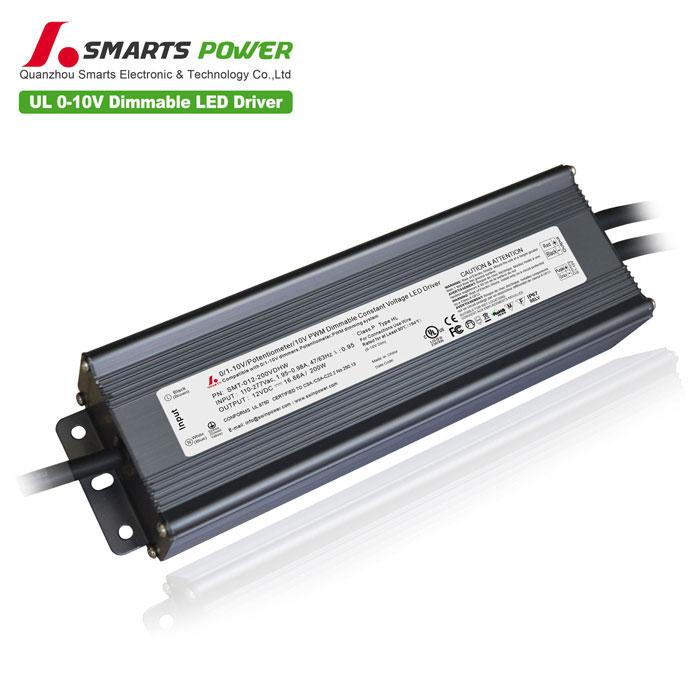

277V 0-10V Dim Driver 200W(Standard Size)
SMT-012-200VDHWJ
0-10V Dimmable LED Driver
SMARTS
SMT-012-200VDHW is 0 10v waterproof 12v 200w dimmable led driver power supply The waterproof grade is ip67, the outer shell is aluminum, and the waterproof performance is better than the ordinary12...
SMT-012-200VDHW is 0 10v waterproof 12v 200w dimmable led driver power supply The waterproof grade is ip67, the outer shell is aluminum, and the waterproof performance is better than the ordinary12v led power supply 200W
| Model | SMT-012-200VDHW | SMT-024-200VDHW | |
| Output | DC Voltage | 12V | 24V |
| Voltage Accuracy | ±0.5V | ±0.5V | |
| Rated current | 0~16.66A | 0~8.33A | |
| Rated power | 200W | ||
| Input | Voltage Range | 100-305VAC (110, 277VAC) | |
| Frequency Range | 47~63HZ | ||
| Power Factor ( Typ.) | PF≧0.93/120V , PF>0.95/277V | ||
| Full Load Efficiency(Typ.) | >91%(120V) / >92%(277V) | ||
| AC Current(Typ.) | 2.171@110VAC / 0.817A@277VAC | ||
| Leakage current | ﹤0.9mA/120VAC / ﹤0.7mA/220VAC /﹤0.68mA/277VA | ||
| Protection | Short Circuit | Protection type: Hiccup mode, recovers automatically after fault condition is removed | |
| Over voltage | ≦330VAC | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, re-power on to recover | ||
| Environment | Working TEMP. | -40~+50℃ | |
| Working Humidity | 20~95%RH,non-condensing | ||
| Storage TEM.,Humidity | -40~+80℃,10~95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | Class P, Type HL, EN61347-1 EN61347-2-13 IP67 | |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC | ||
| Isolation resistance | I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | Compliance toEN55015,EN61000-3-2 (≧50%load) | ||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level | ||
| Others | Weight | 1.8Kg | |

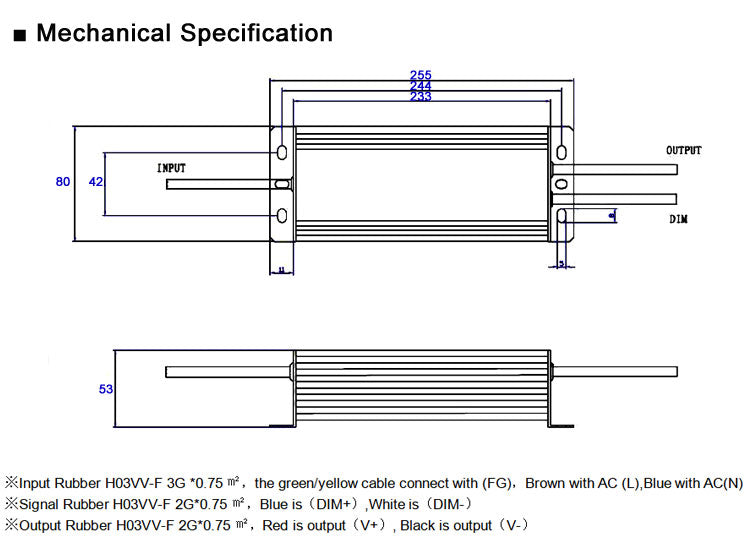

| Size | 255*80*53mm(L*W*H) | ||
| packing | 440*295*145mm/8pcs/CTN 265*98*55 mm for inner box | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 110~277VAC input , rated load and 25℃of ambient temperature. | ||
| 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. | |||
| 3. Tolerance:includes set us tolerance,line regulation and load regulation . | |||
