Slim Size Triac Dimmable LED Driver 100W (IP67)
SMT-012-100VTSW
Triac Dimmable LED Driver
SMARTS
Ultra-thin strip size waterproof Triac dimmable led power supply 12v 100w The weight is lighter dimming LED driver 100W, and it is more concealed.
model
SMT-012-100VTSW
SMT-024-096VTSW
Outpu...
Ultra-thin strip size waterproof Triac dimmable led power supply 12v 100w The weight is lighter dimming LED driver 100W, and it is more concealed.
| model | SMT-012-100VTSW | SMT-024-096VTSW | |
| Output | DC Voltage | 12VDC | 24VDC |
| Voltage Accuracy | ±5% | ±5% | |
| Rated current | 8.33Amp | 4Amp | |
| Rated power | 100W | 96W (class 2) | |
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input | Voltage Range | 100-277 VAC | |
| Frequency Range | 47~63HZ | ||
| Power Factor ( Typ.) | PF≧0.99/110V ; PF≧0.98/277V | ||
| Full Load Efficiency(Typ.) | >83% | >84% | |
| AC Current(Typ.) | 1.10A/100VAC / 0.43A/277VAC | ||
| Inrush Current(Typ.) | 9.2A, 50%, 1ms@120VAC / 26.4A, 50%, 780us@2770VAC | ||
| Leakage current | <0.50mA/110VAC; ﹤0.13mA/277VAC | ||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Loading | ≤120% shut down o/p voltage, re-power on to recover | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| Environment | Working TEMP. | -40~+60℃ | |
| Working Humidity | 20~90%RH,non-condensing | ||
| Storage TEM.,Humidity | -40~+80℃,10~95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | UL8750+UL1310 | |
| Withstand voltage | I/P-O/P: 2KVAC | ||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | FCC Part 15 B | ||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,,11,Alight industry level | ||
| Others | Weight | 0.55Kg | |

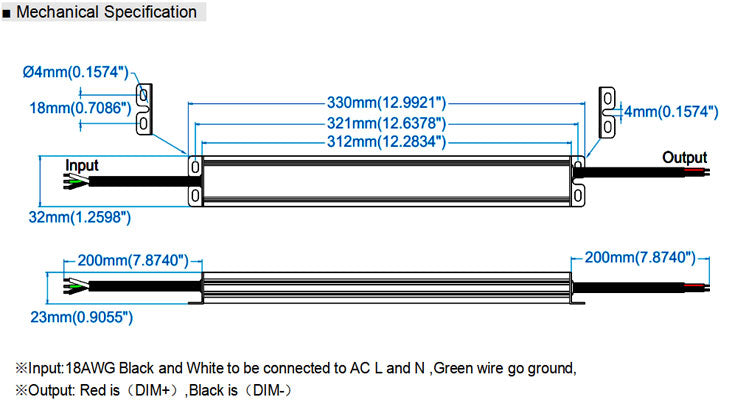

| Size | 330*32*23mm (L*W*H) | ||
| packing | 50PCS/CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,Rated load and 25℃of ambient temperature. | ||
| 2. Tolerance:includes set us tolerance,line regulation and load regulation . | |||
¡öDimming Operation
Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..
Please try to use dimmers with power at least 1.5 times as the output power of the driver.
