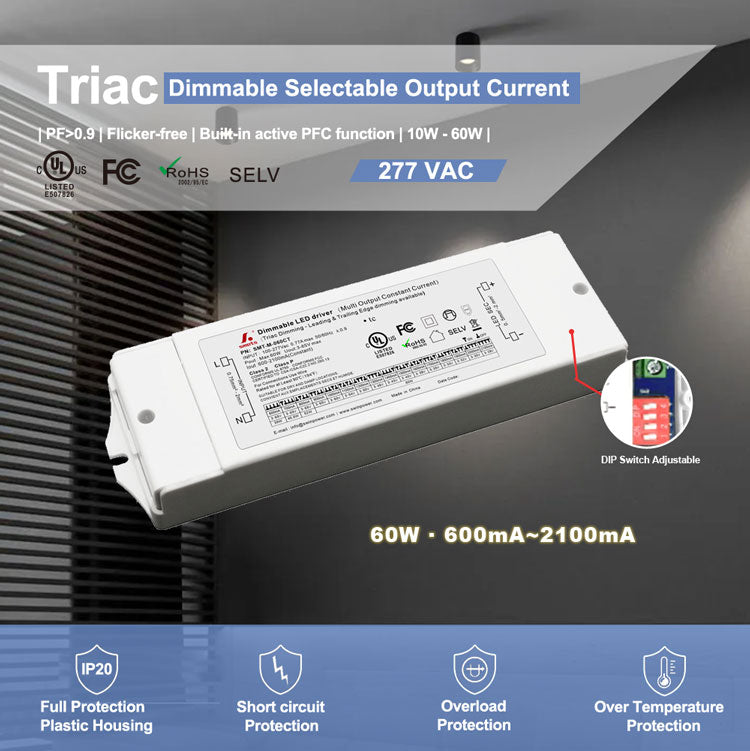

Triac Dim Multi-Current Driver 60W (DIP Adjustment)
SMT-M-060CT
Triac Dimmable LED Driver
SMARTS
Smarts Triac dimmable led drivers 60W is designed with multiple-output, which is built-in active PFC function. With a high power Factor up to 0.99 and high efficiency up to 92%. Given 7 years warr...
Smarts Triac dimmable led drivers 60W is designed with multiple-output, which is built-in active PFC function. With a high power Factor up to 0.99 and high efficiency up to 92%. Given 7 years warranty. Most phase dimmer is compatible with that.
- Input with DG126 terminals 3P: Live Wire AC (L), Neutral Wire AC(N)
- Output LED SEC with DG126 terminals 2P: output Positive (LED+), output negative (LED-). Connected to LED Lamps.
- Suggested wire diameter: Input 0.75-2mm2; Output:0.5-2mm2.
Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged
