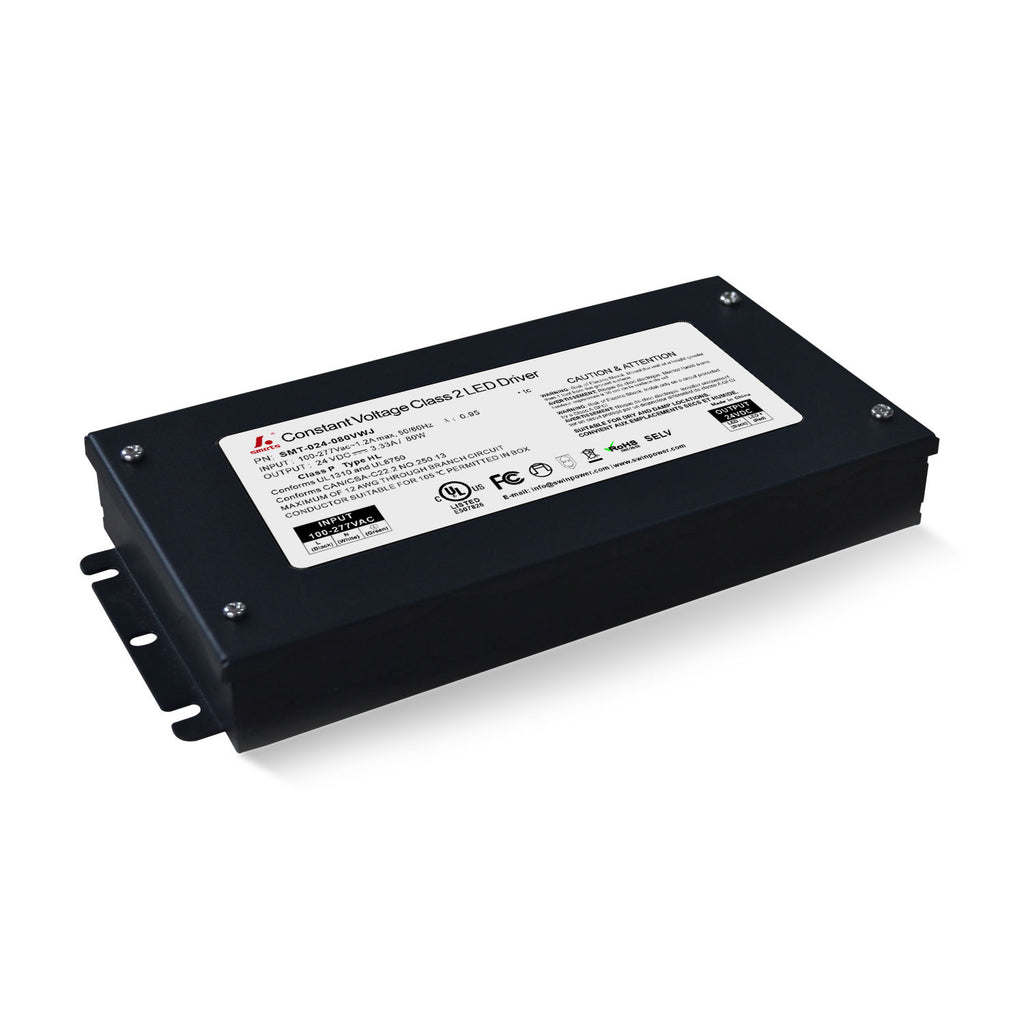

Non-Dimmable J-Box Driver 80W
SMT-012-080VWJV2
Non-dimmable LED Driver
SMARTS
277Vac lighting driver 80W is a non-dimmable power supply.developed by SMARTS led driver manufacturers for North American lighting.With class P standard.
model
SMT-024-080VWJ (1.0 version)SMT-...
277Vac lighting driver 80W is a non-dimmable power supply.developed by SMARTS led driver manufacturers for North American lighting.With class P standard.

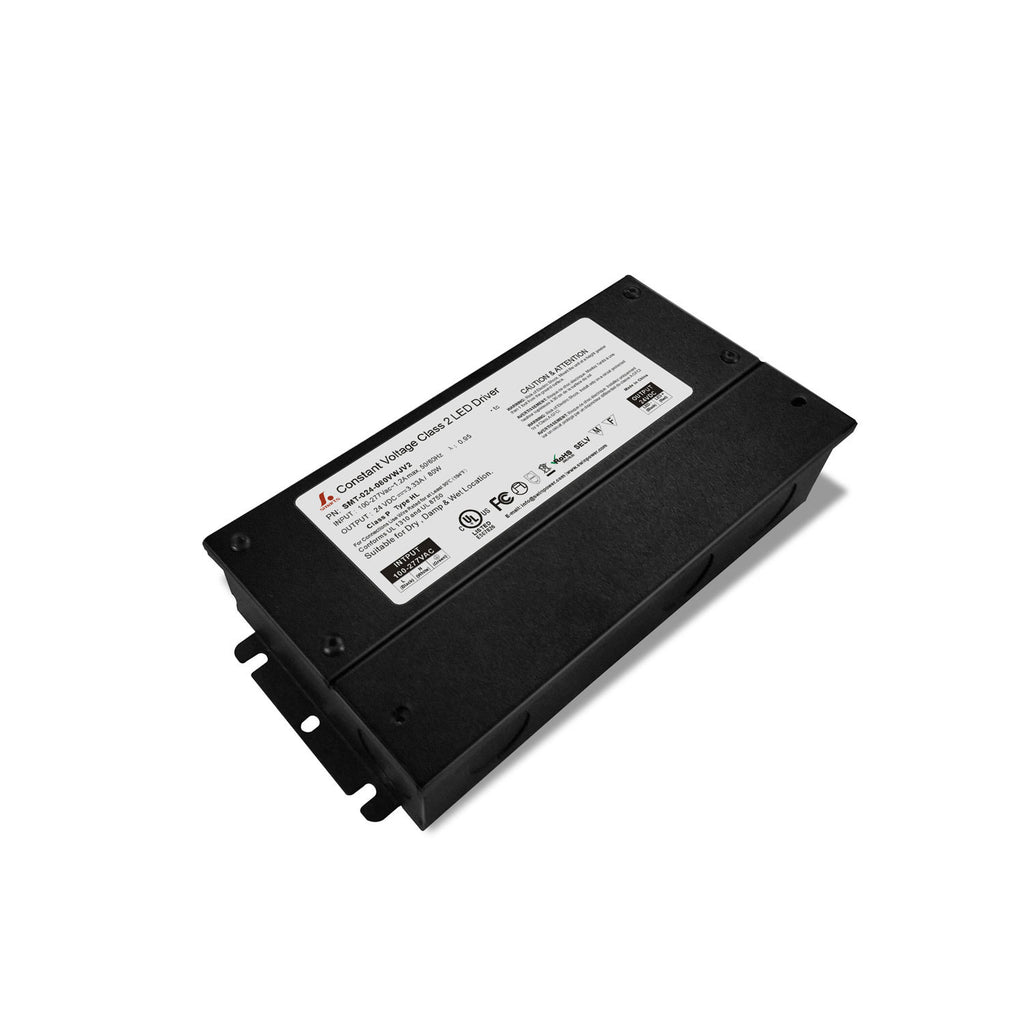

| model | SMT-024-080VWJ (1.0 version) SMT-024-080VWJV2 (2.0 version) |
||
| Output | DC Voltage | 24V | |
| Voltage Accuracy | ±0.5V | ||
| Rated current | 3.33A | ||
| Rated power | 80W | ||
| Input | Voltage Range | 100-277VAC | |
| Frequency Range | 47-63Hz | ||
| Power Factor(Typ.)@ full load | 0.99@120VAC 0.97@230VAC 0.95@277VAC | 0.99@120V ; 0.96@230V ;0.97@277V | |
| THD(Typ.)@ full load | <15%@120VAC <20%@230VAC <20%@277VAC | ||
| Efficiency(Typ.)@ full load | 80% @120VAC 85%@230VAC 84%@277VAC | 83%@120V 87%@230V 86%@277V | |
| AC Current(Max.) | 1.2A (100VAC) | ||
| Inrush Current (Typ.0 | 20A,50% ,1.6ms@120V ; 30A,50% 200us@230V ; 25A,50% 1.2ms@277V | ||
| Leakage current | <0.50mA | ||
| Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition removed | |
| Over Loading | ≤120% constant current limiting, auto-recovery | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | |
| Working Humidity | 20~90%RH, non-condensing | ||
| Storage TEMP. Humidity | -40~+80℃,10~95%RH | ||
| TEMP .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle, period for 60min. each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | UL8750+UL1310 | |
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | FCC Part 15 B | ||
| Others | Weight | 1.3Kg | |
| Size | 1.0 version: 220*93*40mm (L*W*H) / 2.0 version: 220*94.5*40mm | ||
| packing | 10PCS/CTN 385*335*200mm 20PCS/CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. | ||
| 2. Tolerance:includes set us tolerance,line regulation and load regulation . | |||
