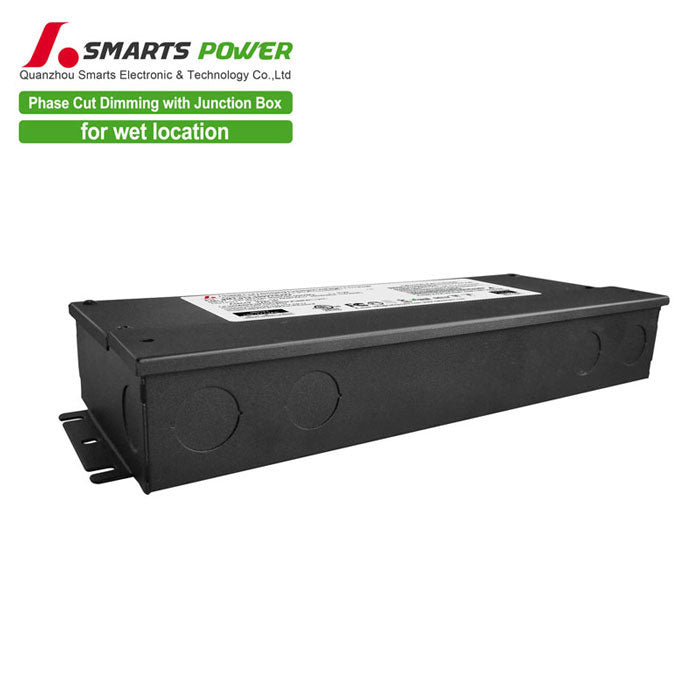

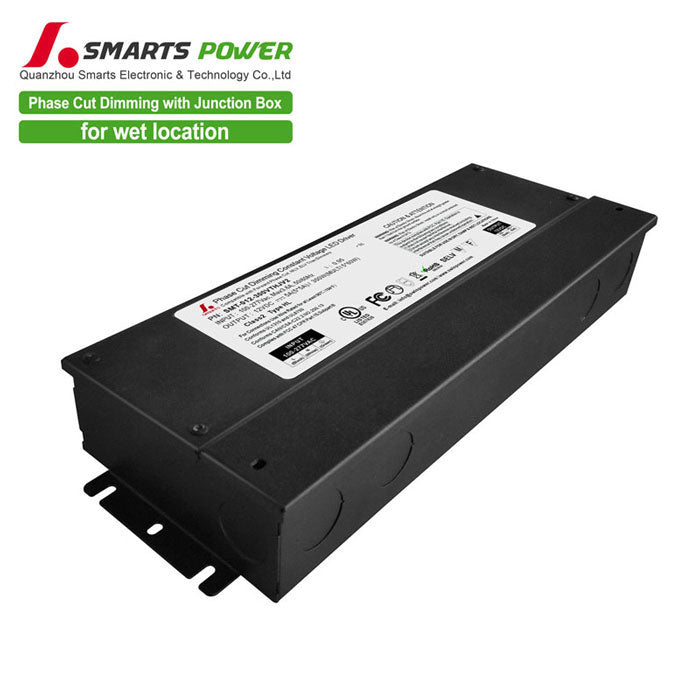

277V Class 2 Triac Dim J-Box Driver 384W
SMT-024-384VTHJ
Triac Dimmable LED Driver
SMARTS
UL listed J-Box Triac dimmable transformer 300W for led lights.With multiple output lines, each output line 60W, designed in strict accordance with class 2 standards, stability is higher than Arc L...
UL listed J-Box Triac dimmable transformer 300W for led lights.With multiple output lines, each output line 60W, designed in strict accordance with class 2 standards, stability is higher than Arc Led's 300W dimmable led driver
| Model | SMT-024-384VTHJV2 | SMT-048-384VTHJV2 | |
| Output | DC Voltage | 24V | 48V |
| Voltage Tolerance | 4*4A | ||
| Voltage Regulation | 384W (4*96W) | ||
| Load Regulation | ±0.5V | ||
| Rated current | ±0.5% | ||
| Rated power | ±1% | ||
| Input | Voltage Range | 100-277VAC | |
| Frequency Range | 47-63Hz | ||
| Power Factor(Typ.)@ full load | 0.99@120VAC 0.95@277VAC | 0.99@120VAC 0.95@277VAC | |
| THD(Typ.)@ full load | <20% | <20% | |
| Efficiency(Typ.)@ full load | 89%@120VAC 90%@277VAC | 89%@120VAC 90%@277VAC | |
| AC Current(Max.) | 3.7A@100VAC | 3.7A@100VAC | |
| Inrush Current (Typ.) | 35A (twidth=960us) @120VAC ; 43A (twidth=1ms) @277VAC 12.4A (twidth=430us) @277VAC | ||
| Leakage current | <0.50mA | ||
| Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over Loading | ≤120% Hiccup mode ,recovers automatically after fault condition is removed | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | |
| Working Humidity | 20~90%RH, non-condensing | ||
| Storage TEMP. Humidity | -40~+80℃,10~95%RH | ||
| TEMP .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| Safety standards | UL8750+UL1310 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
| Safety&EMC | EMC EMISSION | FCC Part 15 B | |
| Others | Net. Weight | 2.7Kg | |
| Size | 323*140*47.5mm (L*W*H) | ||
| packing | 10pcs /CTN | ||
| Notes | 1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. | ||
| 2. To extend the driver's using life ,please reduce the loading at lower input voltage. | |||

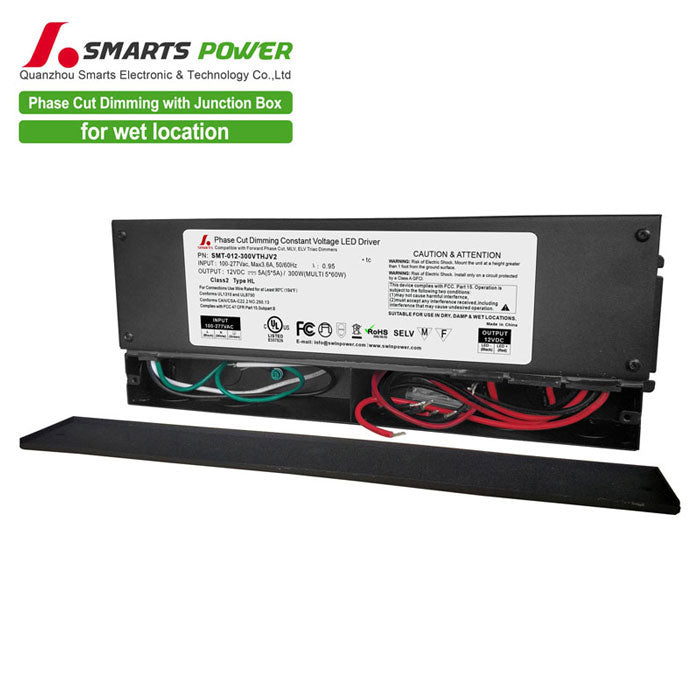

Input wire 18AWG Black and White to be connected to AC L and N ,Green wire is ground wire and goes ground.?
Output wire16AWG Red to LED Positive side (+) while Black to LED Negative side (-).; Four groups output cables for Four groups output cables for SMT-024-384VTHJV2?and SMT-048-384VTHJV2
Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
