Slim Size Non-Dimmable LED Driver 60W (IP67)
SMT-012-060VWSW
Non-dimmable LED Driver
SMARTS
SMARTS is a supplier of LED driver 60W.We designed an ultra-thin, slender, high-PF & Efficiency LED power supply. our 60W LED driver has more market advantages and is widely praised by the Euro...
SMARTS is a supplier of LED driver 60W.We designed an ultra-thin, slender, high-PF & Efficiency LED power supply. our 60W LED driver has more market advantages and is widely praised by the European and American markets.
| model | SMT-012-060VWSW | SMT-024-060VWSW | |
| Output | DC Voltage | 12VDC | 24VDC |
| Voltage Accuracy | ±5% | ±5% | |
| Rated current | 5.0Amp | 2.5Amp | |
| Rated power | 60W | 60W | |
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input | Voltage Range | 100-277 VAC | |
| Frequency Range | 47~63HZ | ||
| Power Factor ( Typ.) | PF≧0.99/110V ; PF≧0.98/230V ; PF≧0.97/277V | ||
| Full Load Efficiency(Typ.) | 82%@120VAC ;84%@230VA ; 84%@ 277VAC | 84%@120VAC;86%@230VAC; 86%@ 277VAC | |
| AC Current(Typ.) | 0.75A/100VAC / 0.2A/277VAC | ||
| Inrush Current(Typ.) | 7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC; 12A,50%480us@277VAC | ||
| Leakage current | <0.5mA/110VAC; ﹤0.2mA/277VAC | ||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Loading | ≤120% shut down o/p voltage, re-power on to recover | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| Environment | Working TEMP. | -40~+60℃ | |
| Working Humidity | 20~90%RH,non-condensing | ||
| Storage TEM.,Humidity | -40~+80℃,10~95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | EN61347-1 EN61347-2-13 | |
| Withstand voltage | I/P-O/P: 3.75KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms/500VDC/25℃/70%RH | ||
| EMC EMISSION | Compliance to EN55015,EN61000-3-2 (≥60%load) | ||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry | ||
| Others | Weight | 0.45Kg | |

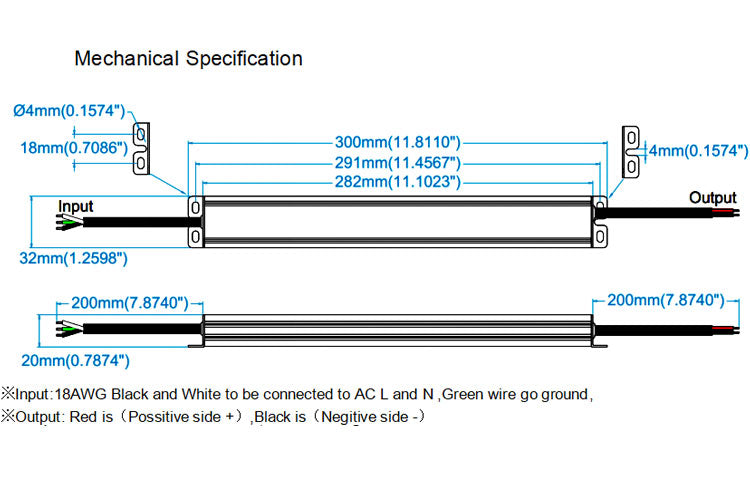

| Size | 300*32*20mm (L*W*H) | ||
| packing | 50PCS/CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,Rated load and 25℃of ambient temperature. | ||
| 2. Tolerance:includes set us tolerance,line regulation and load regulation . | |||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufacturesmust be-qualify EMC Directive on the complete installation again. | |||
