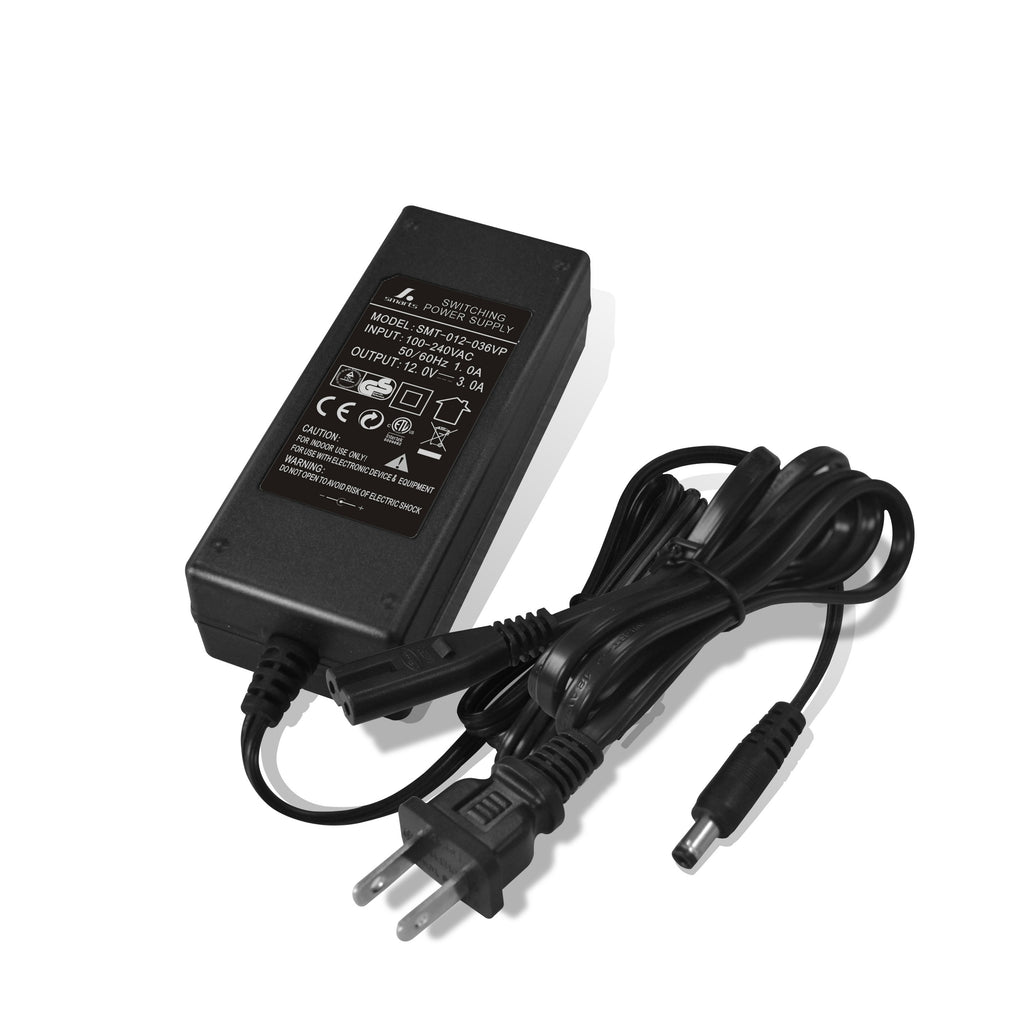

desktop type power adapter 36W
SMT-012-036VP
Wall-Mounted & Desktop Power Adapter
SMARTS
Model
SMT-012-036VP
SMT-024-036VP
Output
Output Voltage
12V
24V
Rated Current
3A
1.5A
Rated Power
36w
Input
Voltage Range
100-240V AC
Frequency Range
47/63Hz +/-3Hz
Input current
0.2...
| Model | SMT-012-036VP | SMT-024-036VP | |
| Output | Output Voltage | 12V | 24V |
| Rated Current | 3A | 1.5A | |
| Rated Power | 36w | ||
| Input | Voltage Range | 100-240V AC | |
| Frequency Range | 47/63Hz +/-3Hz | ||
| Input current | 0.2A max | ||
| Efficiency | >80% | ||
| Environment | Working Temp. | 0℃ to +40℃ | |
| Storage Temp. | -20℃ to +60℃ | ||
| Others | AC | NA standardAC plug | |

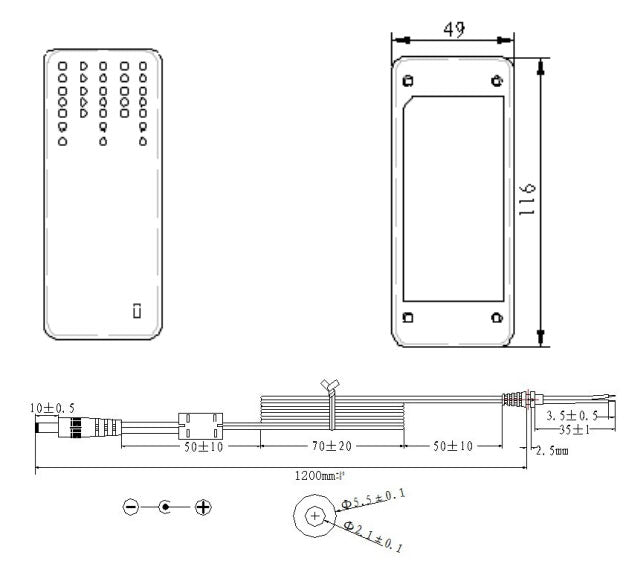

| DC cord | 1.2m EU standard cord with male plug/ DC connector:5.5*2.1*10mm | ||
| Warranty | 2 years | ||
| Certificate | CE/ROHS/ETL | ||
| Delivery | 7 working days for sample order,12 working days for 500pcs | ||
| Payment terms | T/T, Western Union, Paypal, Trade Assurance | ||
Remarks：
1)SPT-1 20AWG*2C L=1200mm Color: Black (音插带磁环)
2) PLUG: 5.5*2.1*10mm
