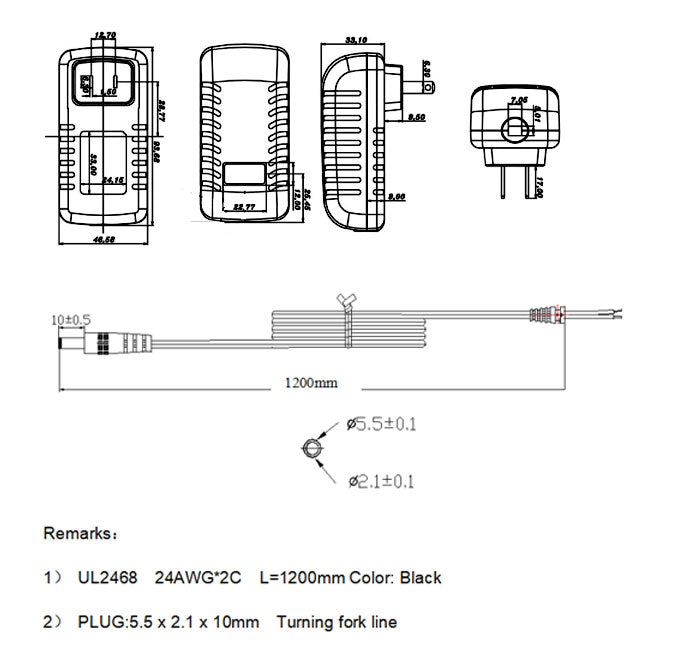

Wall-mount type power adapter 12W
SMT-012-012VP
Wall-Mounted & Desktop Power Adapter
SMARTS
SMT-012-012VP is a 12v 12w 1A switching power supply can work in the voltage range of 90-264vac, the maximum input current is 500ma, passed UL certification, for indoor use, with short circuit prot...
SMT-012-012VP is a 12v 12w 1A switching power supply can work in the voltage range of 90-264vac, the maximum input current is 500ma, passed UL certification, for indoor use, with short circuit protection, safe and reliable
| model | SMT-012-012VP | SMT-024-012VP | |
| Output | DC Voltage | 12V | 24V |
| Voltage Accuracy | ±0.5V | ±0.5V | |
| Voltage Regulation | ±0.5% | ||
| Rated current | 1A | 0.5A | |
| Load Regulation | ±1% | ||
| Rated power | 12W | 12W | |
| Input | Voltage Range | 100-240V AC | |
| Frequency Range | 47~63HZ | ||
| Power Factor ( Typ.) | 80%@120V, 80%@230V ,89%@277V | 80%@120V,80%@230V | |
| Full Load Efficiency(Typ.) | 0.7 | 0.7 | |
| AC Current(Typ.) | 500MA MAX. | ||
| Inrush Current (Typ.) | 7A, 50%, 420us @120VAC; | ||
| Ripple | <200mV | ||
| Over temperature | 90℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition removed | ||
| Over Loading | ≤120% Hiccup mode, recovers automatically after fault conditionis removed. | ||
| Over voltage | ≦265VAC | ||
| Environment | Working TEMP. | 0~+40℃ | |
| Working Humidity | 20~90%RH,non-condensing | ||
| Storage TEM.,Humidity | -20~+60℃,10~95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | UL60950-1,EN60950-1,GB4943-2001 | |
| Withstand voltage | I/P-O/P:2KVAC | ||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | FCC Part 15 B | ||
| Hi-Pot | AC3000Vrms/50Hz,5mA max | ||
| Others | Weight | About 0.12Kg | |
| Size | 75*42*30mm (L*W*H) | ||
| packing | 100PCS/CTN (L*W*H) | ||
